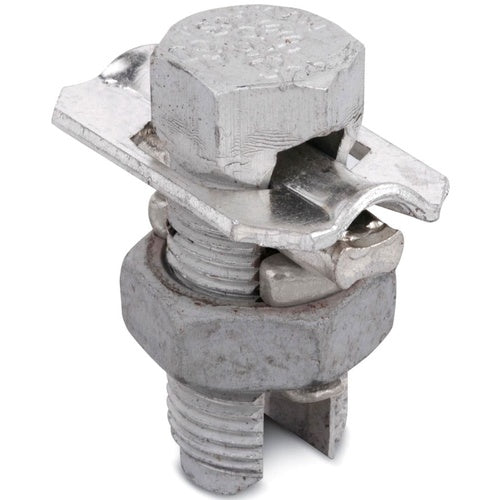

Blackburn 4AAW 2Sol Aluminum Split Bolt

Overview

Blackburn 4AAW 2Sol Aluminum Split Bolt

Product Specifications

• UPC: 78378685510
• Maximum Tap Conductor Size: 4 AWG (ACSR), 2 AWG SOLID (ALUMINUM)
• Material: ALUMINUM ALLOY SPACER/BOLT/PRESSURE BAR, ANODIZED ALUMINUM ALLOY NUT
• Catalog Number: 4AAW
• Brand Name: Blackburn[R]
• Model: AAW
• Installation: SPLIT BOLT WITH SPACER, WASHER
• Conductor Material: ALUMINUM/ACSR
• Minimum Run Conductor Size: 8 AWG (ACSR), 8 AWG SOLID (ALUMINUM)
• Maximum Run Conductor Size: 4 AWG (ACSR), 2 AWG SOLID (ALUMINUM)
• Minimum Tap Conductor Size: 8 AWG (ACSR), 8 AWG SOLID (ALUMINUM)
• Catalog Description: TYPE AAW ALUMINUM SPLIT-BOLT CONNECTOR WITH SPACER AND WASHER FOR USE ON ALUMINUM, ASCR CONDUCTORS. CONDUCTOR RANGE FOR EQUAL MAIN AND TAP 2 SOL.-8 SOL.
• Category: Large Terminals & Connectors
• Full Technical Description: Aluminum Alloy Spacer/Bolt/Pressure Bar, Anodized Aluminum Alloy Nut Material; 8 AWG (ACSR), 8 AWG Solid (Aluminum) min. Run Conductor Size; 4 AWG (ACSR), 2 AWG Solid (Aluminum) Max. Run Conductor Size; 8 AWG (ACSR), 8 AWG Solid (Aluminum) min. Tap Conductor Size; 4 AWG (ACSR), 2 AWG Solid (Aluminum) Max. Tap Conductor Size; Split Bolt With Spacer, Washer Installation; Aluminum/Acsr Conductor Material; BLACKBURN[R] Brand; AAW Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Blackburn
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 783786855100
• SKU Name: blkbrn 4aaw
