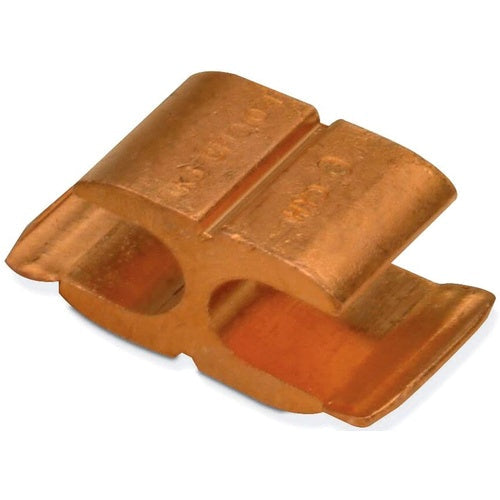

Blackburn CF44-1 #4Awg Connector

Overview

Blackburn CF44-1 #4Awg Connector

Product Specifications

• UPC: 78378607619
• Body Material: Electrolytic Copper
• Approval: RUS
• Catalog Number: CF44-1
• Shape: H
• Conductor Material: Copper
• Minimum Run Conductor Size: 6 AWG Solid (Standard)
• Maximum Run Conductor Size: 6 AWG Stranded (Standard), 4 AWG Solid (Standard)
• Minimum Tap Conductor Size: 8 AWG Solid (Standard)
• Maximum Tap Conductor Size: 6 AWG Stranded (Standard), 4 AWG Solid (Standard)
• Die Index: B, T, W-KB (Mechanical Tool), B, BKT (Hydraulic Tool)
• Catalog Description: COPPER H-TYPE COMPRESSION CONNECTOR MAIN: 6 TR. 4, 6 SOLID COPPER, TAP: 8, 4, 6 SOLID COPPER, TAP: 6 STRANDED COPPER
• Category: Large Terminals & Connectors
• Full Technical Description: 6 AWG Solid (Standard) min. Run Conductor Size; 6 AWG Stranded (Standard), 4 AWG Solid (Standard) Max. Run Conductor Size; 8 AWG Solid (Standard) min. Tap Conductor Size; 6 AWG Stranded (Standard), 4 AWG Solid (Standard) Max. Tap Conductor Size; H Shape; Copper Conductor Material; RUS Approval; Electrolytic Copper Body Material; B, T, W-Kb (Mechanical Tool), B, Bkt (Hydraulic Tool) Die Index
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Blackburn
• Sub Category: Compression Cable Tap
• Unspsc: 39121409
• UPC 12 Digit: 783786076192
• SKU Name: blkbrn cf441
