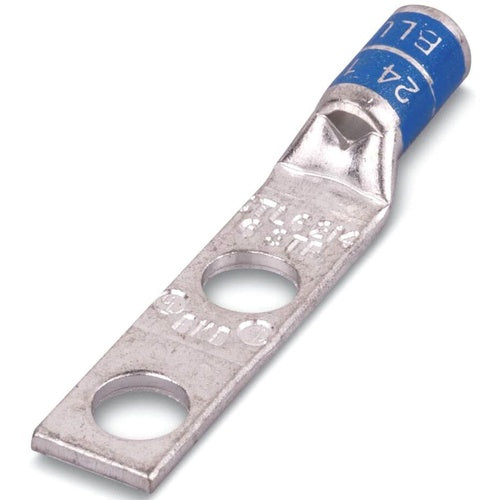

Blackburn CTL4002 Copper Test Point 2-Hole Lug Short Barrel 400 1/2B Blue

Overview

Blackburn CTL4002 Copper Test Point 2-Hole Lug Short Barrel 400 1/2B Blue

Product Specifications

• UPC: 78378613199
• Pad Size: 3 INCH L X 1-13/32 INCH W X 5/32 INCH THK
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1-3/4 INCH
• Stud Size: 1/2 INCH
• Color: BLUE
• Die Index: 24, 76
• Material: TIN PLATED SEAMLESS COPPER
• Overall Length: 4-15/16 INCH
• Approval: UL, CSA
• Additional Information: STANDARD PACKAGE 100 PER CARTON
• Catalog Number: CTL4002
• Brand Name: Blackburn[R]
• Model: CTL
• Voltage Rating: 35 KV
• Conductor Material: COPPER
• Conductor Size: 400 KCMIL
• Barrel Type: SHORT
• Barrel Length: 1-11/32 INCH
• Catalog Description: TYPE CTL COPPER TWO-HOLE LUG, SHORT BARREL, MAX 35KV, WIRE SIZE 400 KCMIL, 1/2 INCH BOLT SIZE, TIN PLATED, DIE COLOR CODE BLUE
• Category: Large Terminals & Connectors
• Full Technical Description: Tin Plated Seamless Copper Material; Blue Color; 4-15/16 Inch Overall Length; 1-11/32 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 35 kV Voltage Rating; 400 kcmil Conductor Size; 1/2 Inch Stud Size; 24, 76 Die Index; 3 Inch L X 1-13/32 Inch W X 5/32 Inch Thk Pad Size; 2 Pad Hole(S); 1-3/4 Inch Pad Hole Spacing; Short Barrel Type; BLACKBURN[R] Brand; Standard Package 100 Per Carton; CTL Model
• Manufacturer: THOMAS & BETTS BLACKBURN
• Manufacturer Brand: T&B Blackburn
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 783786131990
• SKU Name: blkbrn ctl4002
