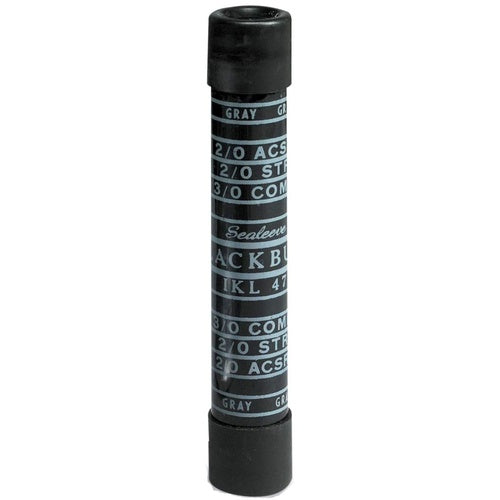

Blackburn IKL45 Aluminum Service Entrance Splice A:3/0 B:1-2 5.5

Overview

Blackburn IKL45 Aluminum Service Entrance Splice A:3/0 B:1-2 5.5

Product Specifications

• UPC: 78378605024
• Color Code: Gray, Red
• Die Index: 840
• Length: 5-1/2 Inch
• Additional Information: Type Insulated; Applicable Standard ANSI C119.4
• Catalog Number: IKL45
• Brand Name: Blackburn
• Material: Aluminum
• Conductor Material: ACSR/Aluminum/Copper
• Side A Acsr Conductor Size: 2/0 AWG
• Side A Al/Cu Conductor Size: 2/0 AWG Stranded Compact, 3/0 AWG Stranded Compact
• Side B Acsr Conductor Size: 2 AWG
• Side B Al/Cu Conductor Size: 2 to 1 AWG Stranded
• Catalog Description: ALUMINUM 4 INCH SERVICE ENTRANCE COMPRESSION SPLICE FOR WIRE RANGE - GRAY END: 2/0 ASCR, 2/0 STR, 3/0 CPT, 2/0 CPR. RED END: #2 ASCR, #1 STR, #1 SOL, #1 CPR, INSTALLING DIES: TX 249 840 (EEI 11A). COMPOUND AND CAPPED. INCLUDES 5-7/16 INCH SLEEVE
• Category: Service Entrance Cable Fittings
• Full Technical Description: Aluminum Material; 5-1/2 Inch; Acsr/Aluminum/Copper Conductor Material; Gray, Red Color Code; 840 Die Index; 2 to 1 AWG Stranded Side B Al/Cu Conductor Size; 2/0 AWG Stranded Compact, 3/0 AWG Stranded Compact Side A Al/Cu Conductor Size; 2 AWG Side B ACSR Conductor Size; 2/0 AWG Side A ACSR Conductor Size; Type Insulated; Applicable Standard ANSI C119.4
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Blackburn
• Sub Category: Service Entrance Sleeve
• Unspsc: 39121449
• UPC 12 Digit: 783786050246
• SKU Name: blkbrn ikl45
