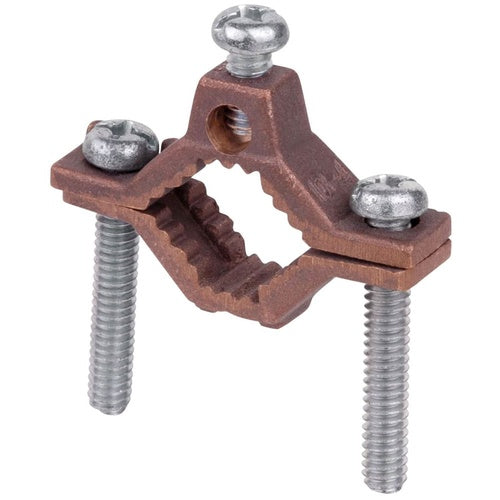

Blackburn J2124 2-1/4-4 Grounding ClAMP

Overview

Blackburn J2124 2-1/4-4 Grounding Clamp

Product Specifications

• UPC: 78378680115
• Catalog Number: J2124
• Conductor Size: 10 to 4 AWG
• Size: 1 Inch Length x 6-5/16 Inch Width x 6 Inch Depth
• Installation: Screw Plate
• Material: High Conductive Copper Alloy
• Approval: UL
• Used On: Grounding Conductor to Water Pipe/Copper Tube
• Additional Information: Water Pipe Size 2-1/2 to 4 Inch
• Catalog Description: CAST BRONZE GROUND CLAMP FOR WIRE RANGE 10 - 4, WATER PIPE SIZE 2 1/2 - 4
• Category: Ground Rods & Grounding Systems
• Full Technical Description: High Conductive Copper Alloy Material; 1 Inch Length X 6-5/16 Inch Width X 6 Inch Depth Size; Grounding Conductor to Water Pipe/Copper Tube Used on; Screw Plate Installation; UL Approval; 10 to 4 AWG Conductor Size; EZGROUND[TM] Brand; Water Pipe Size 2-1/2 to 4 Inch
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Blackburn
• Sub Category: Conduit To Rod Clamp
• Unspsc: 39121613
• UPC 12 Digit: 783786801152
• SKU Name: blkbrn j2124
