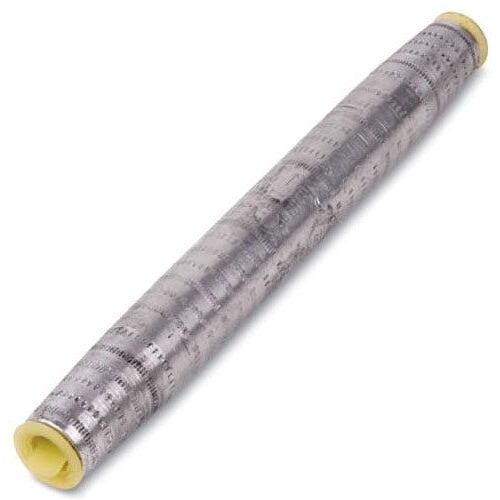

Blackburn RCJ40-BB 4/0Awg Sleeve

Overview

Blackburn RCJ40-BB 4/0Awg Sleeve

Product Specifications

• Brand Name: Blackburn
• Standard: ANSI C119.4 - meets the 40 percent partial tension requirement.
• Type: Compression Splice
• Conductor Range: 4/0(6/1) ACSR ; 4/0(7) AAAC ; 4/0(7) 5005 ; 4/0(7) AAC
• Connection: Compression
• Insulation: None
• Material: Aluminum
• Mounting: None
• Number Of Conductors: 2
• Size: 6-3/4 inch
• Special Features: Type RJC Aluminum Jumper Sleeve for ACSR, AAAC, 5005 and AAC Conductor
• Catalog Description: ALUMINUM 6-3/4 INCH PARTIAL-TENSION DISTRIBUTION COMPRESSION SPLICE FOR WIRE RANGE: 4/0 ACSR(6/1), 4/0 AAAC(7), 4/0 5005(7), 4/0 AAC(7), HYDRAULIC DIES: B61EA, 654, 1.00
• Category: Large Terminals & Connectors
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Blackburn
• Sub Category: Compression Overhead Sleeve
• Unspsc: 39121449
• UPC 12 Digit: 783786051434
• SKU Name: blkbrn rcj40bb
