Bryant 3430BRY Locking Receptacle 4P4W30A600V

Overview

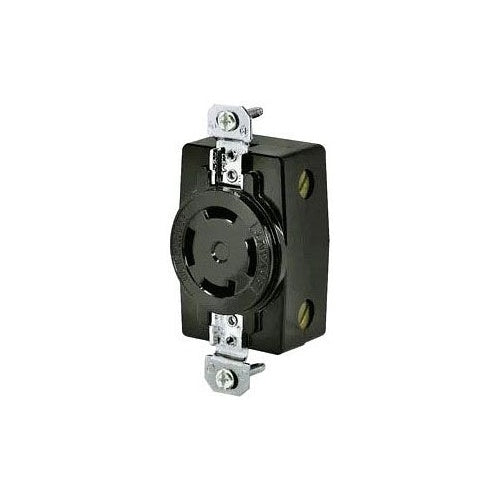

Bryant 3430BRY Locking Receptacle 4P4W30A600V

Product Specifications

• Catalog Description: LOCKING DEVICES, INDUSTRIAL, FLUSH RECEPTACLE, 30A 3-PHASE WYE 120/208V AC, 4-POLE 4-WIRE NON-GROUNDING, NON-NEMA, SCREW TERMINAL, BLACK.
• Category: Receptacles & Surge Protectors
• Full Technical Description: Single Locking Type; Reinforced Thermoplastic Polyester (Base), Nylon (Face) Material; Black Color; Non-NEMA Locking Configuration; 4 Wire(S); UL 94/498, CSA C22.2, CE Approval; 120/208 VAC Star 3-Phase Voltage Rating; Flush Mounting; 30 Ampere Current Rating; Non-Grounding; 4 Pole(S); Corrosion Resistant; Back, Side Wiring; 1.56 Inch Face Outer Diameter; Operating Temperature -40 to 85 Deg C
• Manufacturer: Bryant Electric, Inc.
• Manufacturer Brand: Bryant Electric, Inc.
• Sub Category: Locking Device Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 781786619906
• SKU Name: bryant 3430bry
