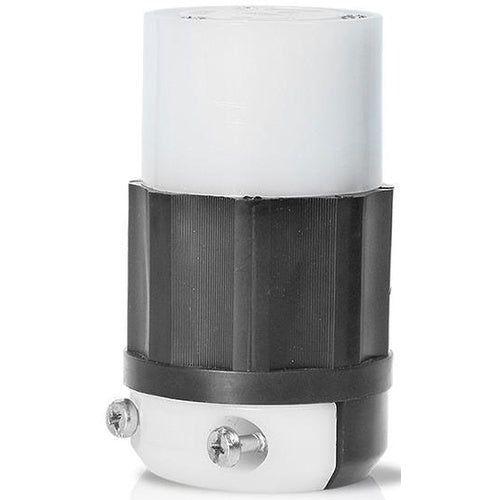

Leviton 4779-C Locking Connector L7-15R

Overview

Leviton 4779-C Locking Connector L7-15R

Product Specifications

• UPC: 07847779580
• Ground Type: Grounding
• Material: Impact Modified Nylon (Body), Zinc Plated Steel (Assembly Screw), Thermoplastic (Back Cover), Solid Brass (Blade/Contact), Nylon (Clamp Insert/Cord Clamp)
• Color: Black/White
• Cord Size: 0.23 to 0.685 Inch, 18 to 10 AWG
• Approval: UL, CSA C22.2
• Additional Information: Power Rating 2 HP; Dielectric Voltage 2000 Volt; Temperature Rating -40 to 60 Deg C; Application Industrial; Applicable Standard ANSI C73, NOM 057, ISO 9001
• Catalog Number: 4779-C
• Brand Name: Black & White[R]
• Constructional Feature: Impact/Chemical/Abrasion Resistant
• Configuration: L7-15R
• Voltage Rating: 277 Volt AC
• Current Rating: 15 Amp
• Number Of Poles: 2
• Number Of Wires: 3
• Catalog Description: 15 AMP, 277 VOLT, NEMA L7-15R, 2P, 3W, LOCKING CONNECTOR, INDUSTRIAL GRADE, GROUNDING - BLACK-WHITE
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Impact Modified Nylon (Body), Zinc Plated Steel (Assembly Screw), Thermoplastic (Back Cover), Solid Brass (Blade/Contact), Nylon (Clamp Insert/Cord Clamp) Material; Black/White Color; L7-15R Configuration; 3 Wire(S); UL, CSA C22.2 Approval; 277 Volt AC Voltage Rating; 15 Amp Current Rating; Grounding; 2 Pole(S); Impact/Chemical/Abrasion Resistant; 0.23 to 0.685 Inch, 18 to 10 AWG Cord Size; Power Rating 2 HP; Dielectric Voltage 2000 Volt; Temperature Rating -40 to 60 Deg C; Application Industrial; Applicable Standard ANSI C73, NOM 057, ISO 9001
• Made In Usa: Yes
• Manufacturer: Leviton Mfg. Co., Inc.
• Manufacturer Brand: Leviton Mfg. Co., Inc.
• Sub Category: Locking Device Connector
• Unspsc: 39121406
• UPC 12 Digit: 078477795804
• SKU Name: bryant 4779c
