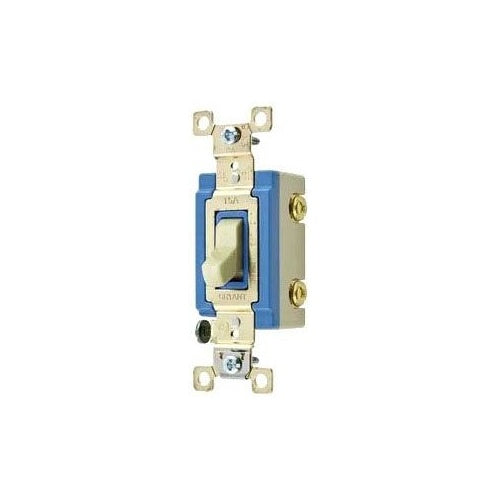

Bryant 4802I Dp15A277V Ivory Ac Switch

Overview

Bryant 4802I Dp15A277V Ivory Ac Switch

Product Specifications

• Catalog Description: SWITCHES AND LIGHTING CONTROLS, INDUSTRIAL GRADE, TOGGLESWITCHES, GENERAL PURPOSE AC, DOUBLE POLE, 15A 120/277V AC, BACK AND SIDEWIRED, IVORY
• Category: General Purpose Switches
• Full Technical Description: Toggle, Extra Heavy Duty Type; Nylon (Toggle) Material; 1.3 Inch W X 1.11 Inch D X 4.06 Inch H Size; Ivory Color; 2-Pole Operation Type; UL, CSA, Fed Spec WS896E Approval; Industrial, Specification Grade Application; 120 to 277 VAC Voltage Rating; 15 Ampere Current Rating; 0.5 HP at 120 VAC, 2 HP at 240/277 VAC Power Rating; Back, Side Wiring; Wire Size 14 to 10 AWG; Contact Material Silver Cadmium Oxide; Operating Temperature -40 to 75 Deg C
• Manufacturer: Bryant Electric, Inc.
• Manufacturer Brand: Bryant Electric, Inc.
• Sub Category: Standard AC Switch
• Unspsc: 39122211
• UPC 12 Digit: 781786623576
• SKU Name: bryant 4802i
