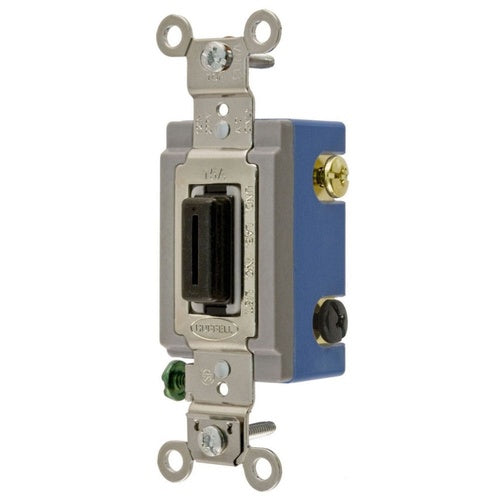

Bryant 4803L 3Way15A277V Ac Switch

Overview

Bryant 4803L 3Way15A277V Ac Switch

Product Specifications

• Catalog Description: SWITCHES AND LIGHTING CONTROLS, LOCKING INDUSTRIAL GRADE,TOGGLE SWITCHES, GENERAL PURPOSE AC, THREE WAY, 15A 120/277V AC, BACK AND SIDE WIRED, BLACK NYLON KEY GUIDE, PACKED WITH KEY
• Category: General Purpose Switches
• Full Technical Description: Keyed Locking, Extra Heavy Duty Type; Thermoset (Base), Tapered Head Steel (Lock) Material; 1.31 Inch W X 1.13 Inch D X 4.06 Inch H Size; 3-Way Operation Type; UL, CSA, Fed Spec WS896E Approval; Industrial, Specification Grade Application; 120 to 277 VAC Voltage Rating; 15 Ampere Current Rating; 0.5 HP at 120 VAC, 2 HP at 240/277 VAC Power Rating; Back, Side Wiring; Wire Size 14 to 10 AWG; Contact Material Silver Cadmium Oxide; Operating Temperature -40 to 75 Deg C; Includes Straight Key
• Manufacturer: Bryant Electric, Inc.
• Manufacturer Brand: Bryant Electric, Inc.
• Sub Category: Standard AC Switch
• Unspsc: 39122224
• UPC 12 Digit: 781786623644
• SKU Name: bryant 4803l
