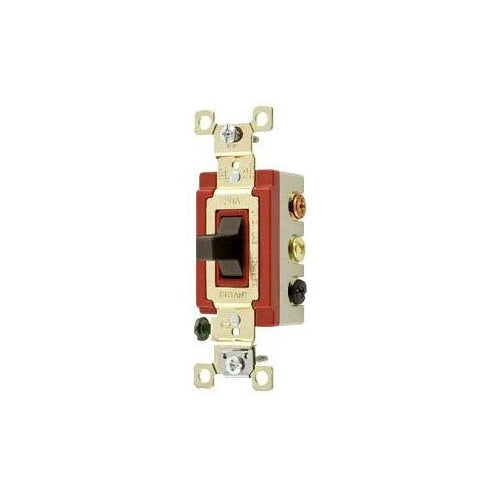

Bryant 4925 Dpdt Main Contact Ac Switch

Overview

Bryant 4925 Dpdt Main Contact Ac Switch

Product Specifications

• Catalog Description: SWITCHES AND LIGHTING CONTROLS, INDUSTRIAL GRADE, TOGGLE SWITCHES, GENERAL PURPOSE AC, DOUBLE POLE- DOUBLE THROW CENTER OFF, 20A 120/277V AC, BACK AND SIDE WIRED, BROWN
• Category: General Purpose Switches
• Full Technical Description: 3-Position, 2-Circuit Type; 1.3 Inch W X 1.11 Inch D X 4.06 Inch H Size; Brown Color; DPDT Contact Configuration; Maintained Operation Type; Toggle Handle Type; UL, CSA Approval; Industrial Application; 120 to 277 VAC Voltage Rating; 20 Ampere Current Rating; 1 HP at 120 VAC, 2 HP at 240/277 VAC Power Rating; Back, Side Wiring; Wire Size 14 to 10 AWG Copper; Material Thermoset (Base), Nylon (Toggle), Silver Cadmium Oxide (Contact); Operating Temperature -40 to 75 Deg C
• Manufacturer: Bryant Electric, Inc.
• Manufacturer Brand: Bryant Electric, Inc.
• Sub Category: Double Throw Ac Switch
• Unspsc: 39122211
• UPC 12 Digit: 781786658301
• SKU Name: bryant 4925
