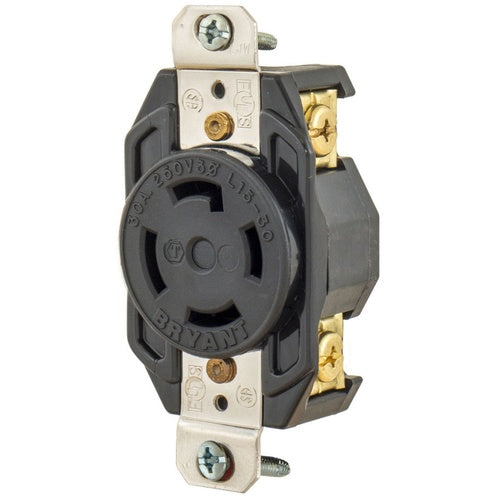

Bryant 71530FR Flush Receptacle Nma L15-30R

Overview

Bryant 71530FR Flush Receptacle Nma L15-30R

Product Specifications

• Catalog Description: LOCKING DEVICES, INDUSTRIAL, FLUSH RECEPTACLE, 30A 3-PHASE DELTA 250V AC, 3-POLE 4-WIRE GROUNDING, L15-30R, SCREW TERMINAL, BLACK
• Category: Receptacles & Surge Protectors
• Full Technical Description: Single Locking Type; Nylon Face, Molded Reinforced Thermoplastic Polyester Base Material; Black Color; L15-30R Configuration; 4 Wire(S); UL 498, CSA, CE, NOM Approval; 125/250 V Voltage Rating; Flush Mounting; 30 Ampere Current Rating; Grounding; 3 Pole(S); Impact Resistant, Chemical Resistant; Back, Side Wiring; 1.56 Inch Face Outer Diameter; Tech SPEC[R] Brand; Applicable Standard Federal Specification WC596/128-1, NEMA Wd 1, NEMA Wd 6
• Manufacturer: Bryant Electric, Inc.
• Manufacturer Brand: Bryant Electric, Inc.
• Sub Category: Locking Device Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 781786696136
• SKU Name: bryant 71530fr
