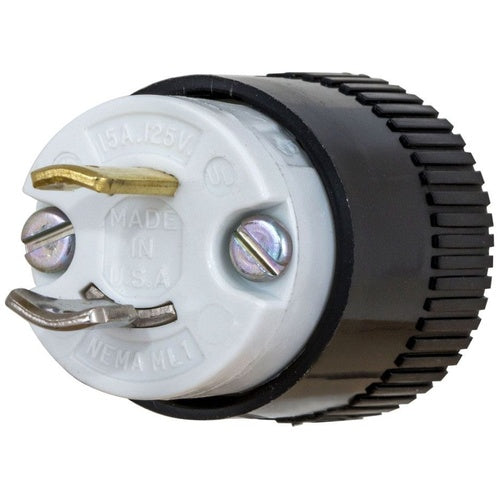

Bryant 7465N Locking Plug Nema Ml-1P

Overview

Bryant 7465N Locking Plug Nema Ml-1P

Product Specifications

• Application: Industrial Grade
• Number Of Poles: 2
• Number Of Wires: 2
• Phase: 1
• Size: Midget Series
• Special Features: Standard Product
• Standard: NEMA WD1 and WD5, UL498
• Sub Brand: Locking
• Type: Male Plug
• Voltage Rating: 125 V
• Wattage: 1,875 W
• Brand Name: Hubbell Wiring Device-Kellems
• Wire Size: #14AWG
• Color: White
• Connection: Terminal Screw
• Cord Type: All Portable
• Environmental Conditions: Indoor Dry unless protected by additional means
• Material: Composite
• Mounting: Cord Mounted
• Nema Rating: ML-1P
• Catalog Description: LOCKING DEVICES, BRYANT MIDGET LOCKING, INDUSTRIAL, MALE PLUG, 15A 125V, 2-POLE 2-WIRE NON-GROUNDING, ML-1P, SCREW TERMINAL, BLACK & WHITE
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Polarized Type; Nylon Material; Black/White Color; ml-1P Configuration; 2 Wire(S); UL 498, CSA, CE, NOM Approval; 125 V Voltage Rating; 15 Ampere Current Rating; Non Grounding; 2 Pole(S); Chemical Resistant, Impact Resistant; 0.22 to 0.425 Inch Cord Size; Tech SPEC[R] Brand; With Non Metallic Cord Grip
• Made In Usa: Yes
• Manufacturer: BRYANT W-DEVICE/ECONOMY CABLE GRIP
• Manufacturer Brand: Bryant Electric, Inc.
• Sub Category: Locking Device Plug
• Unspsc: 39121402
• UPC 12 Digit: 781786628700
• SKU Name: bryant 7465n
