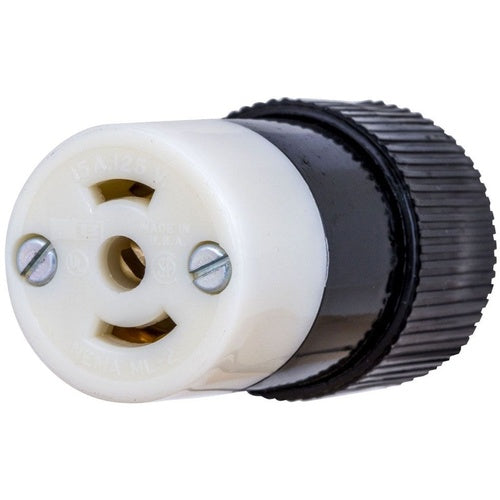

Bryant 7593NC Locking Connector Nema Ml-2R

Overview

Bryant 7593NC Locking Connector Nema Ml-2R

Product Specifications

• Application: Heavy Duty Industrial
• Nema Rating: ML-2R
• Number Of Conductors: 3-Wire Grounding
• Number Of Poles: 2
• Size: Midget Locking
• Special Features: Standard Product
• Standard: UL 498, CSA
• Sub Brand: Twist-Lock
• Temperature Rating: Maximum Continuous: 75 C; Minimum Continuous: -40 C w/o impact, -25 with impact.
• Type: Insulgrip
• Voltage Rating: 125 V
• Brand Name: Hubbell Wiring Device-Kellems
• Color: White
• Conductor Range: #16-14 AWG
• Connection: Screw Terminals
• Environmental Conditions: Indoor Dry unless protected by additional means
• Insulation: Insulated Body
• Material: Composite
• Mounting: Cord Mounted
• Catalog Description: LOCKING DEVICES, BRYANT MIDGET LOCKING, INDUSTRIAL, FEMALE CONNECTOR BODY, 15A 125V, 2-POLE 3-WIRE GROUNDING, ML-2R, SCREW TERMINAL, BLACK & WHITE
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Polarized Type; Nylon Material; Black/White Color; ml-2R Configuration; 3 Wire(S); UL 498, CSA, CE, NOM Approval; 125 V Voltage Rating; 15 Ampere Current Rating; Grounding; 2 Pole(S); Chemical Resistant, Impact Resistant; 0.28 to 0.62 Inch Cord Size; Tech SPEC[R] Brand; Applicable Standard ANSI, NEMA Wd 1, NEMA Wd 6
• Made In Usa: Yes
• Manufacturer: BRYANT W-DEVICE/ECONOMY CABLE GRIP
• Manufacturer Brand: Bryant Electric, Inc.
• Sub Category: Locking Device Connector
• Unspsc: 39121421
• UPC 12 Digit: 781786671300
• SKU Name: bryant 7593nc
