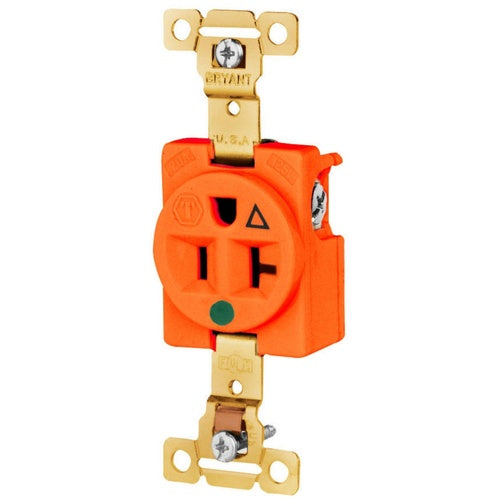

Bryant 8310IG Hospital Grade Single Receptacle-Nm5-20R

Overview

Bryant 8310IG Hospital Grade Single Receptacle-Nm5-20R

Product Specifications

• Catalog Description: STRAIGHT BLADE DEVICES, RECEPTACLES, SINGLE, HOSPITAL GRADE, 20A 125V, 2-POLE 3-WIRE GROUNDING, BACK AND SIDE WIRED, 5-20R, ORANGE, SINGLE PACK
• Category: Receptacles & Surge Protectors
• Full Technical Description: Single Type; Molded Chemical Resistant High Impact Nylon, Brass Nickel Plated Steel Yoke Material; Orange Color; 5-20R Configuration; 3 Wire(S); Hospital Grade; UL 498, UL 544, CSA, NOM Approval; 125 V Voltage Rating; 20 Ampere Current Rating; Isolated Ground; 2 Pole(S); Chemical Resistant, Corrosion Resistant, Impact Resistant; Back, Side Wiring; Tech SPEC[R] Brand; Applicable Standard Federal Specification WC596, NEMA Wd 1, NEMA Wd 6; Contact Material Brass
• Manufacturer: Bryant Electric, Inc.
• Manufacturer Brand: Bryant Electric, Inc.
• Sub Category: Duplex/Single Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 781786731356
• SKU Name: bryant 8310ig
