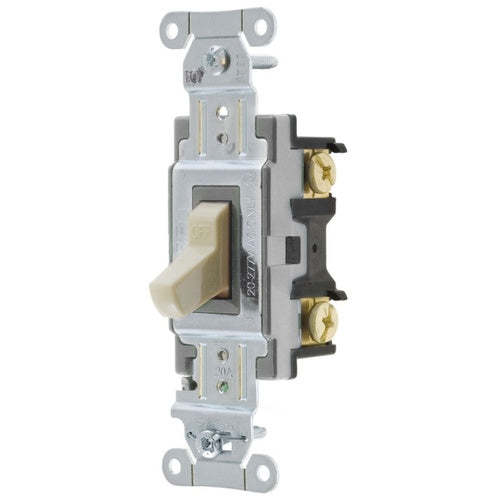

Bryant CS120BI Single Pole 20A Switch

Overview

Bryant CS120BI Single Pole 20A Switch

Product Specifications

• Catalog Description: SWITCHES AND LIGHTING CONTROLS, COMMERCIAL GRADE, TOGGLE SWITCHES, GENERAL PURPOSE AC, SINGLE POLE, 20A 120/277V AC, SIDE WIRED ONLY, IVORY
• Category: General Purpose Switches
• Full Technical Description: Toggle, Self-Grounding Type; Nylon (Toggle) Material; 1.3 Inch W X 1.11 Inch D X 4.06 Inch H Size; Ivory Color; 1-Pole Operation Type; UL, CSA, Fed Spec WS896E, NOM Approval; Commercial Application; 120 to 277 VAC Voltage Rating; 20 Ampere Current Rating; 1 HP at 120 VAC, 2 HP at 240 VAC Power Rating; Side Wiring; Wire Size 14 to 10 AWG; Contact Material Silver Cadmium Oxide; Operating Temperature -40 to 75 Deg C
• Manufacturer: Bryant Electric, Inc.
• Manufacturer Brand: Bryant Electric, Inc.
• Sub Category: Standard AC Switch
• Unspsc: 39122211
• UPC 12 Digit: 781786174450
• SKU Name: bryant cs120bi
