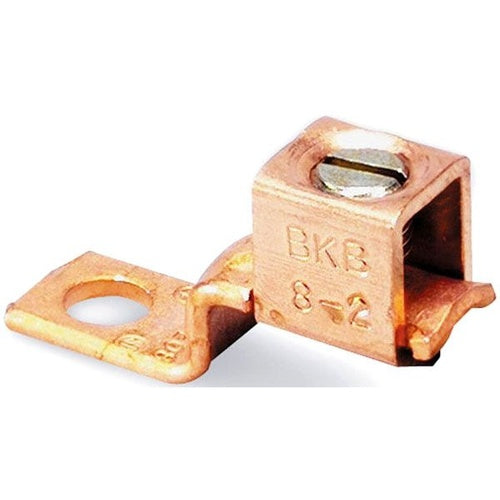

Blackburn BTC1102 2-1/0 Copper Screw Lug

Overview

Blackburn BTC1102 2-1/0 Copper Screw Lug

Product Specifications

• UPC: 78378661133
• Material: Electrolytic Seamless Copper
• Number Of Pad Holes: 1
• Pad Size: 5/8 Inch Width x 1/8 Inch Thickness
• Stud Size: 17/64 Inch
• Overall Length: 1-25/32 Inch
• Approval: UL, CSA
• Catalog Number: BTC1102
• Model: BTC
• Number Of Conductors: 1
• Minimum Conductor Size: 2 AWG Stranded
• Maximum Conductor Size: 1/0 AWG Stranded
• Conductor Material: Copper
• Pad Type: Offset
• Screw Type: Slot
• Catalog Description: TYPE BTC - COPPER SINGLE-CONDUCTOR, ONE-HOLE MOUNT (OFFSET-TANG), CONDUCTOR RANGE 2 STR-1/0 STR, LENGTH 1-25/32 INCHES, WIDTH 5/8 INCH, HEIGHT 1-13/32 INCHES, 17/64 INCH BOLT HOLE
• Category: Large Terminals & Connectors
• Full Technical Description: Electrolytic Seamless Copper Material; 1-25/32 Inch Overall Length; 2 AWG Stranded min. Conductor Size; 1/0 AWG Stranded Max. Conductor Size; Copper Conductor Material; UL, CSA Approval; 1 Conductor(S); 17/64 Inch Stud Size; 5/8 Inch Width X 1/8 Inch Thickness Pad Size; 1 Pad Hole(S); Offset Pad Type; Slot Screw Type; BTC Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Blackburn
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 783786611331
• SKU Name: btc1102 blackburn
