ILSCO CP-0 1/O-8 Copper Post Connector

Overview

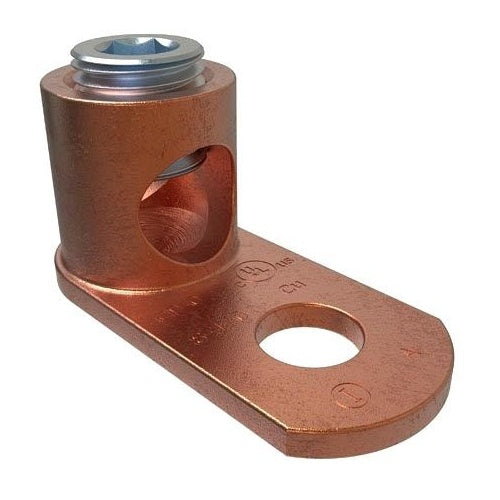

Ilsco CP-0 1/O-8 Copper Post Connector

Product Specifications

• UPC: 78366903010
• Material: High Conductivity Copper Alloy
• Number Of Pad Holes: 1
• Pad Size: 3/4 Inch W
• Stud Size: 5/16 Inch
• Overall Length: 1-1/2 Inch
• Approval: UL 486A/B, CSA
• Additional Information: Temperature Rating 90 Deg C; Stud Hole Size 11/32 Inch; Size 5/8 Inch H; Packaging Quantity 50
• Catalog Number: CP-0
• Model: CP
• Number Of Conductors: 1
• Minimum Conductor Size: 8 AWG
• Maximum Conductor Size: 1/0 AWG
• Conductor Material: Copper
• Pad Type: Straight
• Screw Type: 1/4 Inch Hex
• Catalog Description: COPPER POST CONNECTOR, CONDUCTOR RANGE 1/0-8, 5/16IN BOLT SIZE, UL, CSA
• Category: Large Terminals & Connectors
• Full Technical Description: High Conductivity Copper Alloy Material; 1-1/2 Inch Overall Length; 8 AWG min. Conductor Size; 1/0 AWG Max. Conductor Size; Copper Conductor Material; UL 486A/B, CSA Approval; 1 Conductor(S); 5/16 Inch Stud Size; 3/4 Inch W Pad Size; 1 Pad Hole(S); Straight Pad Type; 1/4 Inch Hex Screw Type; Temperature Rating 90 Deg C; Stud Hole Size 11/32 Inch; Size 5/8 Inch H; Packaging Quantity 50; CP Model
• Manufacturer: ILSCO CORP
• Manufacturer Brand: ILSCO Corp.
• Proposition 65 Warning (Ca): This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 783669030105
• SKU Name: cp0 ilsco
