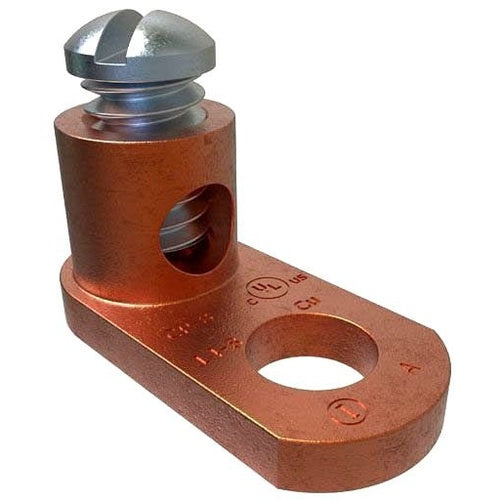

ILSCO CP-8 8-14 Copper Post Connector

Overview

Ilsco CP-8 8-14 Copper Post Connector

Product Specifications

• UPC: 78366902995
• Material: High Conductivity Copper Alloy
• Number Of Pad Holes: 1
• Pad Size: 3/8 Inch W
• Stud Size: #10
• Overall Length: 51/64 Inch
• Approval: UL 486A/B, CSA
• Additional Information: Temperature Rating 90 Deg C; Stud Hole Size 13/64 Inch; Size 27/64 Inch H; Packaging Quantity 100
• Catalog Number: CP-8
• Model: CP
• Number Of Conductors: 1
• Minimum Conductor Size: 14 AWG
• Maximum Conductor Size: 8 AWG
• Conductor Material: Copper
• Pad Type: Straight
• Screw Type: Slot
• Catalog Description: COPPER POST CONNECTOR, CONDUCTOR RANGE 8-14, #10 BOLT SIZE, UL, CSA
• Category: Large Terminals & Connectors
• Full Technical Description: High Conductivity Copper Alloy Material; 51/64 Inch Overall Length; 14 AWG min. Conductor Size; 8 AWG Max. Conductor Size; Copper Conductor Material; UL 486A/B, CSA Approval; 1 Conductor(S); #10 Stud Size; 3/8 Inch W Pad Size; 1 Pad Hole(S); Straight Pad Type; Slot Screw Type; Temperature Rating 90 Deg C; Stud Hole Size 13/64 Inch; Size 27/64 Inch H; Packaging Quantity 100; CP Model
• Manufacturer: ILSCO CORP
• Manufacturer Brand: ILSCO Corp.
• Proposition 65 Warning (Ca): This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 783669029956
• SKU Name: cp8 ilsco

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
