Blackburn CS71 2Awg Sleeve

Overview

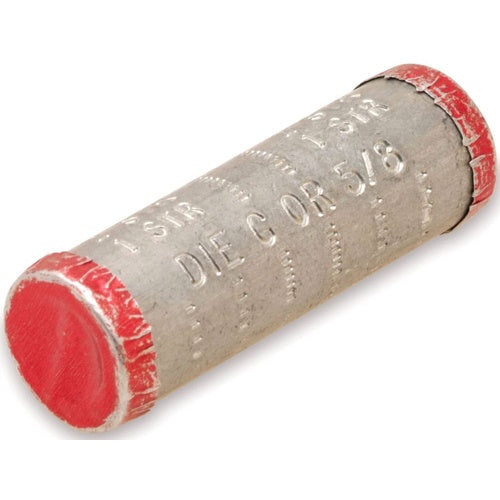

Blackburn CS71 2Awg Sleeve

Product Specifications

• UPC: 78378610101
• Side B Al/Cu Conductor Size: 4 AWG Solid
• Color Code: Red, Blue
• Die Index: 5/8
• Length: 2 Inch
• Additional Information: Connection Type Compression; Number of Conductors 2
• Catalog Number: CS71
• Brand Name: Blackburn[R]
• Model: CS
• Material: Aluminum
• Conductor Material: ACSR
• Side A Acsr Conductor Size: 2 AWG
• Side A Al/Cu Conductor Size: 1 to 2 AWG Stranded
• Side B Acsr Conductor Size: 6 AWG
• Catalog Description: ALUMINUM 2 INCH SERVICE ENTRANCE COMPRESSION SPLICE FOR WIRE RANGE - END A: 2 6/1,7/1 ASCR, 1-2 STRANDED, RED, END B: 6 6/1 ASCR, 6 STRANDED, 4 SOLID, BLUE, DIE: 5/8. FOR AL-AL OR AL-CU CONDUCTORS.
• Category: Service Entrance Cable Fittings
• Full Technical Description: Aluminum Material; 2 Inch; ACSR Conductor Material; Red, Blue Color Code; 5/8 Die Index; 4 AWG Solid Side B Al/Cu Conductor Size; 1 to 2 AWG Stranded Side A Al/Cu Conductor Size; 6 AWG Side B ACSR Conductor Size; 2 AWG Side A ACSR Conductor Size; Connection Type Compression; Number of Conductors 2
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Blackburn
• Sub Category: Service Entrance Sleeve
• Unspsc: 39121449
• UPC 12 Digit: 783786101016
• SKU Name: cs71 blackburn
