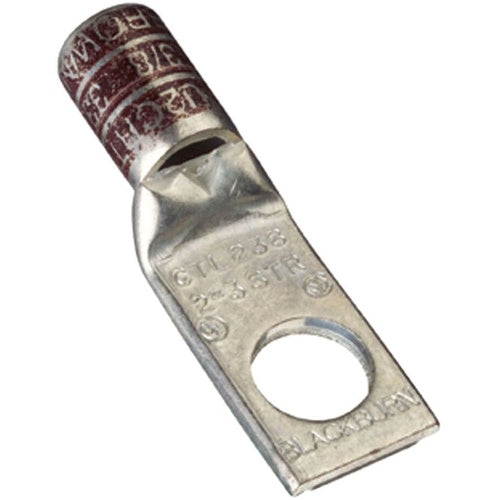

Blackburn CTL2-38 Copper Test Point 1-Hole Lug Short Barrel 2 3/8B Brown

Overview

Blackburn CTL2-38 Copper Test Point 1-Hole Lug Short Barrel 2 3/8B Brown

Product Specifications

• UPC: 78378613178
• Number Of Pad Holes: 1
• Stud Size: 3/8 Inch
• Color: Brown
• Material: Tin Plated Seamless Copper
• Overall Length: 1-3/4 Inch
• Approval: UL, CSA
• Catalog Number: CTL2-38
• Model: CTL
• Voltage Rating: 35 Kilovolt
• Conductor Material: Copper
• Conductor Size: 2 AWG Stranded
• Barrel Type: Short, Standard, Straight
• Barrel Length: 19/32 Inch
• Pad Size: 29/32 Inch Length x 9/16 Inch Width x 3/32 Inch Thickness
• Catalog Description: COPPER ONE-HOLE LUG, SHORT BARREL, MAX 35KV, 2 STR. WIRE, 3/8 BOLT SIZE, TIN PLATED, DIE COLOR CODE BROWN
• Category: Large Terminals & Connectors
• Full Technical Description: Tin Plated Seamless Copper Material; Brown Color; 1-3/4 Inch Overall Length; 19/32 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 35 Kilovolt Voltage Rating; 2 AWG Stranded Conductor Size; 3/8 Inch Stud Size; 29/32 Inch Length X 9/16 Inch Width X 3/32 Inch Thickness Pad Size; 1 Pad Hole(S); Short, Standard, Straight Barrel Type; CTL Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Blackburn
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 783786131785
• SKU Name: ctl238 blkbrn
