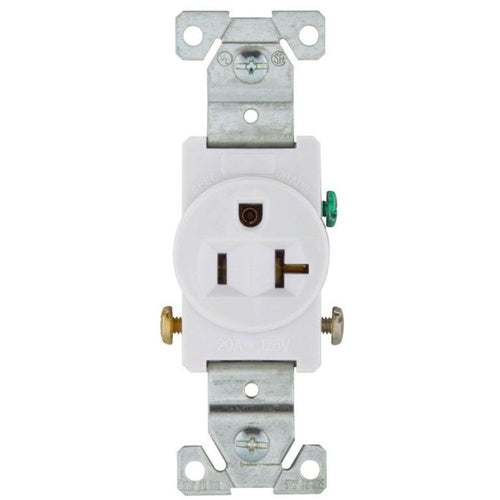

Cooper 1877W-BOX Receptacle Single 20A 125V 2P3W Side-Wired White

Overview

Cooper 1877W-BOX Receptacle Single 20A 125V 2P3W Side-Wired White

Product Specifications

• Brand Name: Eaton
• Special Features: Commercial grade
• Sub Brand: Eaton Wiring Devices
• Type: Commercial
• Catalog Description: EATON COMMERCIAL SPECIFICATION GRADE SINGLE RECEPTACLE, #14-10 AWG, 20A, COMMERCIAL, FLUSH, 125V, SIDE WIRE, WHITE, BRASS, NYLON FACE, PVC BOTTOM, 5-20R, SINGLE, SCREW, PVC, ED BOX
• Category: Receptacles & Surge Protectors
• Full Technical Description: Single, Heavy Duty, Standard Type; Nylon (Face), PVC (Bottom) Material; White Color; NEMA 5-20R Configuration; 3 Wire(S); Commercial Grade; UL (Canada and Us), UL 498, CSA C22.2, NOM 426, Federal Specification 6233-01 Approval; 125 Volt AC Voltage Rating; 20 Amp Current Rating; Grounding; 2 Pole(S); Chemical/Impact Resistant; Side Wiring; RoHS Compliant; NAFTA Compliant; Packaging Type Box; Connection Type Screw; Mounting Type Flush Mount; Wire Size #14 to 10 AWG; Contact Material Brass; Overall Dimension 1.31 Inch Length X 0.87 Inch Width X 4.19 Inch Height
• Manufacturer: Eaton Cooper Wiring
• Manufacturer Brand: Eaton Wiring Devices Residential/Industrial
• Sub Category: Duplex/Single Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 032664311703
• SKU Name: cwd 1877wbox

Resources

• Manufacturer Spec Sheet
