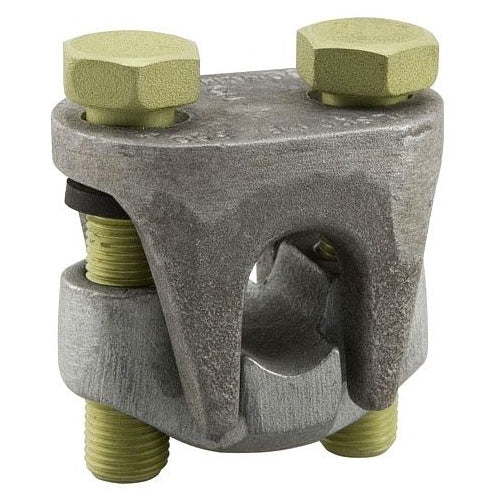

ILSCO DBA-350 350 Aluminum/Copper 2-Bolt Connector

Overview

Ilsco DBA-350 350 Aluminum/Copper 2-Bolt Connector

Product Specifications

• UPC: 78366921342
• Minimum Tap Conductor Size: 10 AWG
• Maximum Tap Conductor Size: 350 KCMIL
• Material: WAX PLATED HIGH STRENGTH HEAT TREATED ALUMINUM ALLOY
• Additional Information: SIZE 2 11/32 INCH W X 2 1/4 INCH H; PACKAGING QUANTITY 12; WITH NEOPRENE WASHER
• Catalog Number: DBA-350
• Brand Name: ILSCO[R]
• Model: DBA
• Voltage Rating: 600 V
• Installation: TWO BOLT
• Conductor Material: ALUMINUM/COPPER
• Minimum Run Conductor Size: 4/0 AWG
• Maximum Run Conductor Size: 350 KCMIL
• Catalog Description: ALUMINUM TWO-BOLT SPLIT BOLT, DUAL RATED, MAIN CONDUCTOR RANGE 350-4/0, TAP RANGE 350-10, WAX PLATED
• Category: Large Terminals & Connectors
• Full Technical Description: Wax Plated High Strength Heat Treated Aluminum Alloy Material; 4/0 AWG min. Run Conductor Size; 350 kcmil Max. Run Conductor Size; 10 AWG min. Tap Conductor Size; 350 kcmil Max. Tap Conductor Size; Two Bolt Installation; Aluminum/Copper Conductor Material; 600 V Voltage Rating; ILSCO[R] Brand; Size 2 11/32 Inch W X 2 1/4 Inch H; Packaging Quantity 12; With Neoprene Washer; DBA Model
• Manufacturer: ILSCO Corp.
• Manufacturer Brand: ILSCO Corp.
• Proposition 65 Warning (Ca): WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 783669213423
• SKU Name: dba350 ilsco
