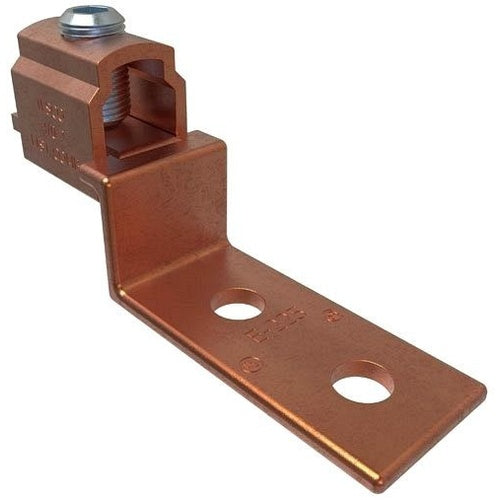

ILSCO E-225 1-Bolt Copper Connector

Overview

Ilsco E-225 1-Bolt Copper Connector

Product Specifications

• UPC: 78366924826
• Screw Type: 7/32 Inch Hex
• Material: Electrolytic Copper
• Number Of Pad Holes: 2
• Pad Size: 2-5/32 Inch L x 1 Inch W
• Stud Size: 5/16 Inch
• Overall Length: 3-19/32 Inch
• Approval: UL 453G, UL 486A/B, CSA
• Additional Information: Size 1-13/16 Inch H; Temperature Rating 90 Deg C; Packaging Quantity 18
• Catalog Number: E-225
• Model: E
• Type: V Bottom Collar
• Number Of Conductors: 1
• Minimum Conductor Size: 2 AWG
• Maximum Conductor Size: 4/0 AWG
• Conductor Material: Copper
• Pad Type: Offset
• Catalog Description: COPPER MECHANICAL LUG OFFSET, CONDUCTOR RANGE 4/0-2, 1 PORT, 2 HOLES, 5/16IN BOLT SIZE, 1IN HOLE SPACING, UL, CSA
• Category: Large Terminals & Connectors
• Full Technical Description: V Bottom Collar Type; Electrolytic Copper Material; 3-19/32 Inch Overall Length; 2 AWG min. Conductor Size; 4/0 AWG Max. Conductor Size; Copper Conductor Material; UL 453G, UL 486A/B, CSA Approval; 1 Conductor(S); 5/16 Inch Stud Size; 2-5/32 Inch L X 1 Inch W Pad Size; 2 Pad Hole(S); Offset Pad Type; 7/32 Inch Hex Screw Type; Size 1-13/16 Inch H; Temperature Rating 90 Deg C; Packaging Quantity 18; E Model
• Manufacturer: ILSCO CORP
• Manufacturer Brand: ILSCO Corp.
• Proposition 65 Warning (Ca): This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 783669248265
• SKU Name: e225 ilsco
