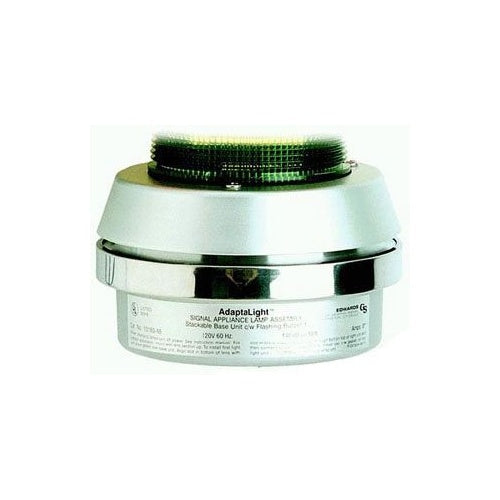

Edwards 101BS-N5 120Vac Adaptalt Base For 101 Series Stacklights

Overview

Edwards 101BS-N5 120Vac Adaptalt Base For 101 Series Stacklights

Product Specifications

• UPC: 78264010105
• Approval: UL (Canada and US)
• Additional Information: Overall Dimension 6 Inch Diameter x 3.5 Inch Height; Application Indoor/Outdoor
• Catalog Number: 101BS-N5
• Brand Name: Edwards Signaling
• Model: 101
• Operating Voltage: 120 Volt AC at 50/60 Hertz
• Operating Current: 0.05 Amp
• Light Module Type: Flashing Incandescent/Halogen/LED, Steady Incandescent/Halogen/LED, Strobe Light
• Audible Device Type: 95 Decibel at 1 Meter, 85 Decibel at 10 Foot Pulsating Horn
• Mounting: Conduit/Panel/4 Inch Octagon Box
• Catalog Description: BASE FOR 101 SERIES STACKLIGHTS. INCLUDES BASE MOUNTED HORN.
• Category: Bells,Horns,Sirens,Buzzers,Strobes
• Full Technical Description: UL (Canada and Us) Approval; 120 Volt AC at 50/60 Hertz Operating Voltage; Conduit/Panel/4 Inch Octagon Box Mounting; 0.05 Amp Operating Current; 95 Decibel at 1 Meter, 85 Decibel at 10 Foot Pulsating Horn Audible Device Type; Flashing Incandescent/Halogen/Led, Steady Incandescent/Halogen/Led, Strobe Light Light Module Type; Stacklight Brand; Overall Dimension 6 Inch Diameter X 3.5 Inch Height; Application Indoor/Outdoor; 101 Model
• Manufacturer: Edwards Signaling
• Manufacturer Brand: Security Systems/Fire Alarm Systems
• Sub Category: Stack Light Base Unit
• Unspsc: 32151503
• UPC 12 Digit: 782640101056
• SKU Name: edw 101bsn5

Resources

• Manufacturer Spec Sheet
