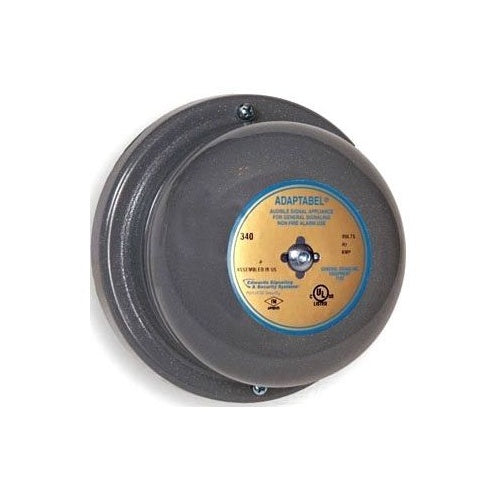

Edwards 340-4FM 4" 16Vac Vibrating Bell

Overview

Edwards 340-4FM 4" 16Vac Vibrating Bell

Product Specifications

• UPC: 78264023462
• Size: 4-1/2 Inch Dia x 2-13/22 Inch D
• Housing Material: Corrosion Resistant Heat Flowed Epoxy Finished Die-Cast
• Mounting: Octagon Box/Single Gang Box/Surface
• Application: Office, Factory, Heavy Machine Shop
• Approval: UL, CSFM, FM
• Additional Information: DC Coil Resistance 22 Ohm; PLC Compatible
• Catalog Number: 340-4FM
• Model: 340
• Type: Round Vibrating Gong
• Voltage Rating: 16 VAC
• Current Rating: 0.46 Ampere
• Power Rating: 7.4 VA
• Sound Intensity: 98 dB at 1 M, 88 dB at 10 Ft
• Gong Size: 4 Inch Dia
• Catalog Description: 4 INCH AC VIBRATING BELL. CAN BE USED IN OUTDOOR APPLICATIONS WITH THE ADDITION OF AN APPROVED BOX FOR THE APPLICATION.
• Category: Bells,Horns,Sirens,Buzzers,Strobes
• Full Technical Description: Round Vibrating Gong Type; 4-1/2 Inch Dia X 2-13/22 Inch D Size; UL, CSFM, FM Approval; Office, Factory, Heavy Machine Shop Application; 16 VAC Voltage Rating; Octagon Box/Single Gang Box/Surface Mounting; 0.46 Ampere Current Rating; 7.4 VA Power Rating; Corrosion Resistant Heat Flowed Epoxy Finished Die-Cast Housing Material; 98 dB at 1 M, 88 dB at 10 ft Sound Intensity; 4 Inch Dia Gong Size; DC Coil Resistance 22 Ohm; PLC Compatible; 340 Model
• Manufacturer: Edwards Signaling
• Manufacturer Brand: Security Systems/Fire Alarm Systems
• Sub Category: Bell
• Unspsc: 60131402
• UPC 12 Digit: 782640234624
• SKU Name: edw 3404fm

Resources

• Manufacturer Spec Sheet
