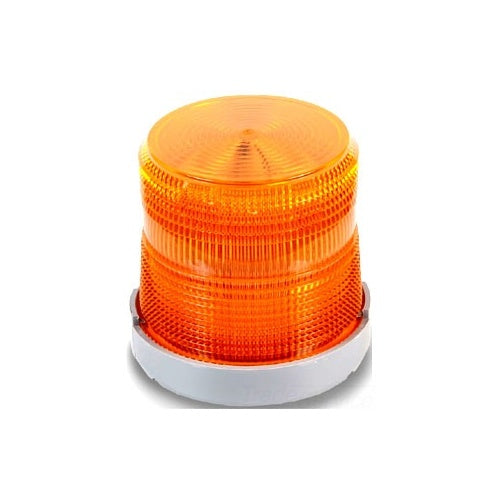

Edwards 48SINA-N5-25WH 120Vac Halogen Steady-On Beacon

Overview

Edwards 48SINA-N5-25WH 120Vac Halogen Steady-On Beacon

Product Specifications

• UPC: 78264025450
• Flash Rate: 65 FPM
• Lens Color: Amber
• Lens Material: Shatter Resistant Polycarbonate
• Size: 4-9/32 Inch Dia x 4-7/32 Inch H
• Enclosure: NEMA 4X
• Approval: UL 1638, CUL
• Additional Information: PLC Compatible; Base Material Gray ABS; Lamp Life 20000 Hr; Application Commercial, Indoor/Outdoor, Industrial; Mounting 1/2 Inch Panel/Conduit/Surface; Lens Type Fresnel; Temperature Rating -31 to 150 Deg F
• Catalog Number: 48SINA-N5-25WH
• Brand Name: AdaptaBeacon
• Model: 48SIN
• Type: Steady Light
• Operating Voltage: 120 VAC at 50/60 Hz
• Operating Current: 0.2 Ampere
• Lamp Type: 25 W Halogen
• Light Intensity: 226 Lumen
• Catalog Description: 48 SERIES STEADY-ON INCANDESCENT BEACON DESIGNED FOR INDOOR OR OUTDOOR APPLICATIONS.
• Category: Bells,Horns,Sirens,Buzzers,Strobes
• Full Technical Description: Steady Light Type; 4-9/32 Inch Dia X 4-7/32 Inch H Size; UL 1638, CUL Approval; 120 VAC at 50/60 Hz Operating Voltage; NEMA 4X Enclosure; 25 W Halogen Lamp Type; 0.2 Ampere Operating Current; Shatter Resistant Polycarbonate Lens Material; Amber Lens Color; 65 FPM Flash Rate; 226 Lumen Light Intensity; Adaptabeacon Brand; PLC Compatible; Base Material Gray ABS; Lamp Life 20000 HR; Application Commercial, Indoor/Outdoor, Industrial; Mounting 1/2 Inch Panel/Conduit/Surface; Lens Type Fresnel; Temperature Rating -31 to 150 Deg F; 48SIN Model
• Manufacturer: Edwards Signaling
• Manufacturer Brand: Security Systems/Fire Alarm Systems
• Sub Category: Stack Light Module
• Unspsc: 39111706
• UPC 12 Digit: 782640254509
• SKU Name: edw 48sinan525wh

Resources

• Manufacturer Spec Sheet
