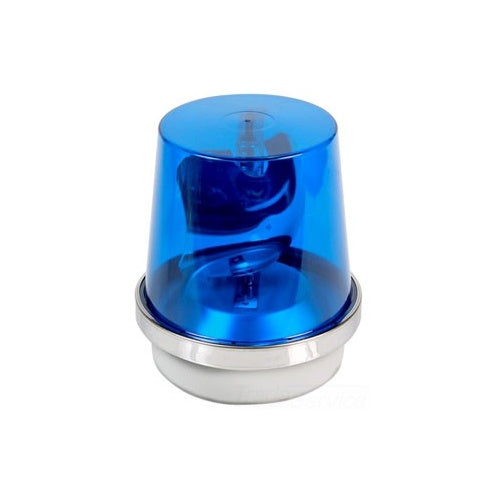

Edwards 52B-N5-40WH 120V Blue Rotating Beacon

Overview

Edwards 52B-N5-40WH 120V Blue Rotating Beacon

Product Specifications

• UPC: 78264026550
• Material: polycarbonate
• Lens Color: Blue
• Size: 6 Inch Length x 2 Inch Width x 8-1/2 Inch Height
• Mounting: 1/2 Inch Threaded Conduit or Surface
• Application: Indoor/Outdoor
• Approval: UL (Canada and US)
• Additional Information: Power Rating 40 Watt; Duty Cycle 50 Percent; Lamp Life 25000 Hour; Temperature Rating -31 to 150 Deg F
• Catalog Number: 52B-N5-40WH
• Model: 52
• Type: Rotating Light
• Operating Voltage: 120 Volt AC 50/60 Hertz
• Operating Current: 0.35 Amp
• Lamp Type: Halogen
• Light Intensity: 265 Lumen
• Flash Rate: 75 RPM
• Catalog Description: EDWARDS 52 SERIES ROTATING BEACON FOR INDOOR OR OUTDOOR APPLICATIONS. CAST BASE CAN BE UTILIZED AS JUNCTION BOX. MAY BE MOUNTED VERTICALLY, FACING UP OR DOWN IN 3 DAYS.
• Category: Bells,Horns,Sirens,Buzzers,Strobes
• Full Technical Description: Rotating Light Type; Polycarbonate Material; 6 Inch Length X 2 Inch Width X 8-1/2 Inch Height Size; UL (Canada and Us) Approval; 120 Volt AC 50/60 Hertz Operating Voltage; Indoor/Outdoor Application; 1/2 Inch Threaded Conduit or Surface Mounting; Halogen Lamp Type; 0.35 Amp Operating Current; Blue Lens Color; 75 RPM Flash Rate; 265 Lumen Light Intensity; Adaptabeacon [R] Brand; Power Rating 40 Watt; Duty Cycle 50 Percent; Lamp Life 25000 Hour; Temperature Rating -31 to 150 Deg F; 52 Model
• Manufacturer: Edwards Signaling
• Manufacturer Brand: Security Systems/Fire Alarm Systems
• Sub Category: Strobe/Flashing Light Unit
• Unspsc: 39111706
• UPC 12 Digit: 782640265505
• SKU Name: edw 52bn540wh

Resources

• Manufacturer Spec Sheet
