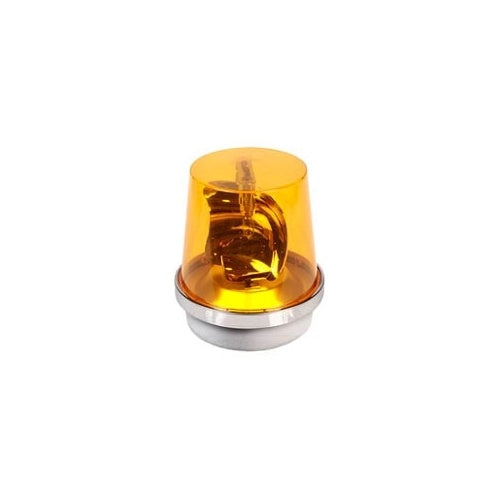

Edwards 53A-E1 12Vdc Amber Rotating Beacon

Overview

Edwards 53A-E1 12Vdc Amber Rotating Beacon

Product Specifications

• UPC: 78264021312
• Flash Rate: 65 FPM
• Lens Color: Amber
• Size: 6 Inch Dia x 8-1/2 Inch H
• Approval: UL 1638, CUL
• Additional Information: Revolution Rate 75 RPM; Base Material Cast; Lamp Life 200 Hr; Application Indoor/Outdoor; Mounting 1/2 Inch NPT Conduit/Surface, 4 Inch Octagon Box; Temperature Rating -31 to 150 Deg F; Includes Polycarbonate Dome, Light Intensifying Reflector
• Catalog Number: 53A-E1
• Brand Name: AdaptaBeacon
• Model: 53
• Type: Rotating Light
• Operating Voltage: 12 VDC
• Operating Current: 1.8 Ampere
• Lamp Type: 25 W Incandescent
• Light Intensity: 402 Lumen
• Catalog Description: EDWARDS 53 SERIES ROTATING BEACON FOR INDOOR OR OUTDOOR APPLICATIONS. CAST BASE CAN BE UTILIZED AS JUNCTION BOX. MAY BE MOUNTED VERTICALLY, FACING UP OR DOWN IN 3 DAYS.
• Category: Bells,Horns,Sirens,Buzzers,Strobes
• Full Technical Description: Rotating Light Type; 6 Inch Dia X 8-1/2 Inch H Size; UL 1638, CUL Approval; 12 VDC Operating Voltage; 25 W Incandescent Lamp Type; 1.8 Ampere Operating Current; Amber Lens Color; 65 FPM Flash Rate; 402 Lumen Light Intensity; Adaptabeacon Brand; Revolution Rate 75 RPM; Base Material Cast; Lamp Life 200 HR; Application Indoor/Outdoor; Mounting 1/2 Inch NPT Conduit/Surface, 4 Inch Octagon Box; Temperature Rating -31 to 150 Deg F; Includes Polycarbonate Dome, Light Intensifying Reflector; 53 Model
• Manufacturer: Edwards Signaling
• Manufacturer Brand: Security Systems/Fire Alarm Systems
• Sub Category: Stack Light Module
• Unspsc: 39111706
• UPC 12 Digit: 782640213124
• SKU Name: edw 53ae1
