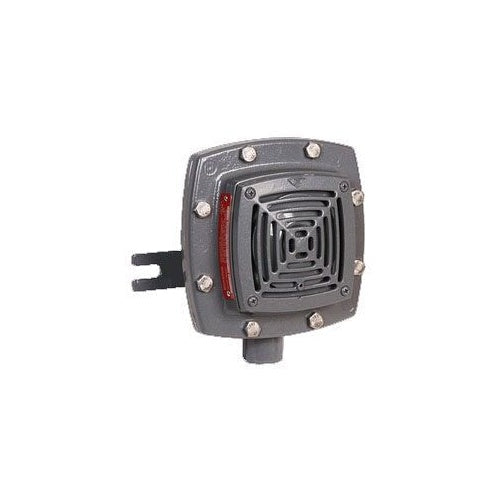

Edwards 878EX-R5 240Vac Explosion Proof Heavy Duty Horn

Overview

Edwards 878EX-R5 240Vac Explosion Proof Heavy Duty Horn

Product Specifications

• UPC: 78264025820
• Conduit Tapping Size: 3/4 Inch
• Housing Material: Corrosion Resistant Heat Flowed Epoxy
• Mounting: Wall
• Enclosure: Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 4X
• Application: Indoor/Outdoor, Mine, Petroleum Plant, Gas Plant, Grain Elevator, Flour Mill, Paper Mills, Textile Plant, Tanker
• Approval: UL
• Additional Information: DC Coil Resistance 580 Ohm
• Catalog Number: 878EX-R5
• Model: 878EX
• Type: Vibrating Horn with Grill
• Voltage Rating: 240 VAC at 50/60 Hz
• Current Rating: 0.065 Ampere
• Power Rating: 15.6 VA
• Sound Intensity: 110 dB at 1 M, 100 dB at 10 Ft
• Size: 7-3/8 Inch W x 4-3/16 Inch D x 7-5/8 Inch H
• Catalog Description: HEAVY-DUTY, HIGH DECIBEL, AC VIBRATING HORN SIGNALS. THEY ARE INTENDED FOR USE IN HAZARDOUS LOCATIONS. FOR NON-FIRE ALARM APPLICATIONS, HORNS HAVE A NEMA TYPE 4X RATING AND MAY BE USED OUTDOORS (RECOMMENDED ABOVE TEMPERATURES OF +25F).
• Category: Bells,Horns,Sirens,Buzzers,Strobes
• Full Technical Description: Vibrating Horn With Grill Type; 7-3/8 Inch W X 4-3/16 Inch D X 7-5/8 Inch H Size; UL Approval; Indoor/Outdoor, Mine, Petroleum Plant, Gas Plant, Grain Elevator, Flour Mill, Paper Mills, Textile Plant, Tanker Application; 240 VAC at 50/60 Hz Voltage Rating; Wall Mounting; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 4X Enclosure; 0.065 Ampere Current Rating; 15.6 VA Power Rating; Corrosion Resistant Heat Flowed Epoxy Housing Material; 110 dB at 1 M, 100 dB at 10 ft Sound Intensity; 3/4 Inch Conduit Tapping Size; DC Coil Resistance 580 Ohm; 878EX Model
• Manufacturer: Edwards Signaling
• Manufacturer Brand: Security Systems/Fire Alarm Systems
• Sub Category: Horn
• Unspsc: 46171602
• UPC 12 Digit: 782640258200
• SKU Name: edw 878exr5

Resources

• Manufacturer Spec Sheet
