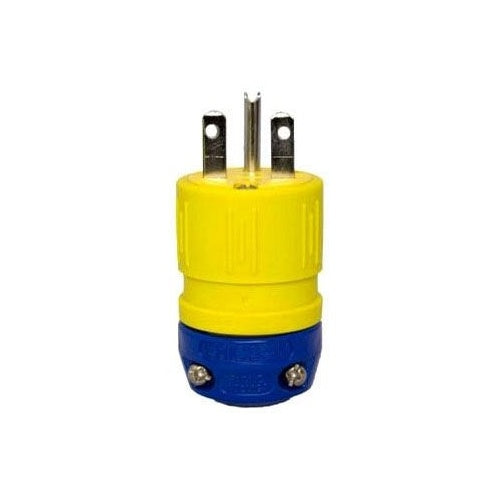

Ericson 1514-P Yellow Plug-Nema6-15P

Overview

Ericson 1514-P Yellow Plug-Nema6-15P

Product Specifications

• Application: Industrial/Construction Environment
• Type: Straight Blade
• Voltage Rating: 250 V
• Brand Name: Ericson
• Nema Rating: 6-15
• Number Of Poles: 2
• Number Of Wires: 3
• Size: 1.6 x 2.44 IN
• Special Features: Grounding, Solid Brass Blade
• Standard: UL, IEC
• Sub Brand: Perma-Tite, Perma-Link, Perma-Grip
• Catalog Description: PLUG NEMA 6-15, PERMA-LINK INDUSTRIAL GRADE YELLOW WIRING DEVICE, STRAIGHT 15 AMP 250V 1PH 2P/3W, SIZE = SM, 1449
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Yellow Color; NEMA 6-15P Configuration; 3 Wire(S); Industrial Grade; UL 498, CSA C22.2 NO.42 Approval; 250 Volt AC 1-Phase Voltage Rating; 15 Amp Current Rating; 2 Pole(S); Perma-Link Brand; Size Small; Environmental Rating Indoor; Applicable Standard ANSI
• Made In Usa: Yes
• Manufacturer: Ericson Mfg. Co.
• Manufacturer Brand: Ericson Mfg. Co.
• Sub Category: Straight Blade Plug
• Unspsc: 39121402
• UPC 12 Digit: 782862587027
• SKU Name: ericson 1514p
