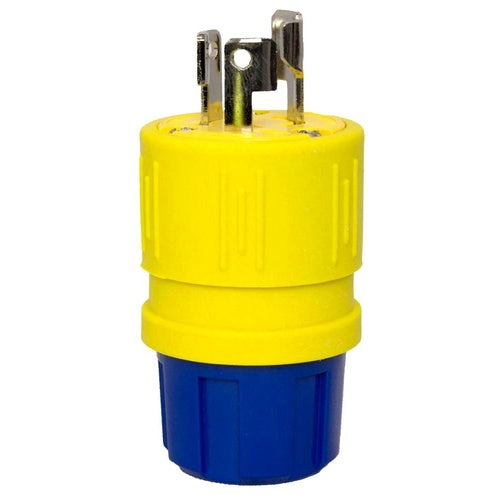

Ericson 1520-PG Nema L5-15P 15A-125V C

Overview

Ericson 1520-PG Nema L5-15P 15A-125V C

Product Specifications

• Application: For Industrial/Construction Environments
• Standard: UL Listed, CSA Certified, Meets IEC
• Sub Brand: Perma-Tite, Perma-Link, Perma-Grip
• Type: Locking
• Voltage Rating: 125 V
• Brand Name: Ericson
• Color: Brilliant Blue/Radiant Yellow
• Material: No-Slip Elastomeric Housing, Solid Brass Blade, Rubber Cord Seal Bushing
• Nema Rating: L5-15
• Number Of Poles: 2
• Number Of Wires: 3
• Size: 1.600 X 2.360 IN
• Special Features: Features: UL Listed And CSA Certified; Quick Field Assembly, No Cable Clamp Screws To Tighten, Simply Twist On The Cord Grip Nut; Water/Mud/Dust Resistance Provided By Safety Compression Cord Grips; Keyed Body And Cover For Easy Alignment/Assembly; Color Coded Rubber Cord-Seal Bushings Accommodate A Wide Range Of Cable Diameters; Molded-In Non-Slip Fingers Grips Makes Devices Easy To Assemble And Handle; Withstand High Impact, Corrosion, Oils, Greases, Solvents And Other Chemicals Across -20 DEG C - +65 DEG C; Individual Wire Pockets Help Prevent Flashovers; Transparent Back Plate Speeds Wiring Inspection; Selected Models Available With Ground Continuity Monitor; Available Individually Or On Factory Assembled Cord Sets; Flexibility Of Reverse-Cover Design (Straight Blade Devices) Creates Weather-Resistant Connections By Interchanging Covers; EricsonS Exclusive Brilliant Blue And Radiant Yellow High Visibility Dual Color Safety System; Perma-Grip Plugs And Connectors All Engineered With :- Dead-Front, Back-Wired Design; Solid Brass Blades; Transparent Back-Plate For Easy Inspection Of Individual Wiring Chamber; Captive Assembly And Terminal Screws Reduce The Risk Of Losing Small Parts; No-Slip Elastomeric Housing With Finger-Grips; High Visibility Ericson Dual-Color Safety System; Nema Configurations And A Variety Of Specialty Non-Nema Devices; 15 AMP, 20 AMP, 30 AMP And 50 AMP Models; Standard Voltages From 120 Volts Through 600 Volts; Easy To Use Charts And Drawings Simplify The Selection/Specification Process Making It Quick And User Friendly; Technical Reference Information Including Osha Regulations And Dimensional Drawings; EricsonS Industry Exclusive Design Combines The Perma-Tite Cord Grip With The Industry Proven Design Of Its Perma-Link Devices To Provide A Line Of Incredibly Tough Plugs And Connectors That Stand Up To The Most Demanding Industrial And Construction Environments; From The Invention Of The First Dead-Front, Back-Wired Electrical Plug In 1929 And Patent In 1936 To Present Day Innovations That Are Designed To Meet Or Exceed UL And IEC Watertight Standards; Temperature Rating: -20 To +65 DEG C
• Catalog Description: PLUG NEMA L5-15, PERMA-GRIP INDUSTRIAL GRADE YELLOW WIRING DEVICE, LOCKING 15 AMP 125V 1PH 2P/3W, SIZE = SM, 2447
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Yellow Color; NEMA L5-15P Configuration; 3 Wire(S); UL, CSA C22.2 No 42, Ansi/Ul 498 Approval; 125 Volt AC 1-Phase Voltage Rating; 15 Amp Current Rating; 2 Pole(S); Industrial Grade, Outdoor; Perma-Grip Brand; Size Small
• Made In Usa: Yes
• Manufacturer: Ericson Mfg. Co.
• Manufacturer Brand: Ericson Mfg. Co.
• Sub Category: Locking Device Plug
• Unspsc: 39121402
• UPC 12 Digit: 782862490044
• SKU Name: ericson 1520pg
