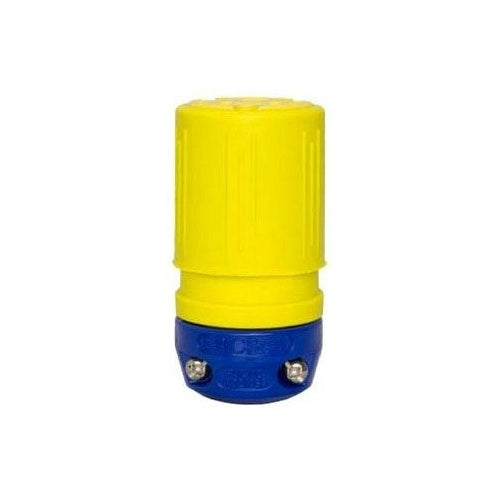

Ericson 1610-C Yellow Connector Nema5-15R

Overview

Ericson 1610-C Yellow Connector Nema5-15R

Product Specifications

• Application: For Industrial/Construction Environments
• Type: Straight Blade, Grounding Devices
• Voltage Rating: 125 V
• Brand Name: Ericson
• Material: Non-Slip Elastomeric Housing, Solid Brass Blade
• Nema Rating: 5-15
• Number Of Poles: 2
• Number Of Wires: 3
• Special Features: Features: Perma-Link Plugs And Connectors All Engineered With :- Dead-Front, Back-Wired Design; Solid Brass Blades; Transparent Back-Plate For Easy Inspection Of Individual Wiring Chamber; Captive Assembly And Terminal Screws Reduce The Risk Of Losing Small Parts; No-Slip Elastomeric Housing With Finger-Grips; High Visibility Ericson Dual-Color Safety System; Nema Configurations And A Variety Of Specialty Non-Nema Devices; 15 AMP, 20 AMP, 30 AMP And 50 AMP Models; Standard Voltages From 120 V Through 600 V; Easy To Use Charts And Drawings Simplify The Selection/Specification Process Making It Quick And User Friendly; Technical Reference Information Including Osha Regulations And Dimensional Drawings; United States Patent Number 4021092 Was Assigned To TodayS Perma- Link Plugs And Connectors Which Are Classified Among The Most Rugged And Safest Wiring Devices Available; They Incorporate Many Of The Same Features As Ericson Perma-Tite 2 And Perma-Grip Devices And Utilize A Two-Screw Cable Clamp; Perma-Link Plugs And Connectors Are Designed To Provide Many Years Of Trouble-Free Service In The Most Demanding Industrial And Construction Environments; Ericson Manufacturing Company Engineers And Produces A Comprehensive Range Of Plugs And Connectors For Demanding Industrial And Construction Environments; From The Invention Of The First Dead-Front, Back-Wired Electrical Plug In 1929 And Patent In 1936 To Present Day Innovations That Are Designed To Meet Or Exceed UL And IEC Watertight Standards
• Standard: UL Listed, Meets IEC, OSHA
• Sub Brand: Perma-Tite, Perma-Link, Perma-Grip
• Catalog Description: CONNECTOR NEMA 5-15, PERMA-LINK INDUSTRIAL GRADE YELLOW WIRING DEVICE, STRAIGHT 15 AMP 125V 1PH 2P/3W, SIZE = SM, 1547
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Portable Power, Wiring Device Type; Yellow Color; NEMA 5-15 Configuration; 3 Wire(S); Industrial Grade; CETL, CSA C22.2, Ansi/Ul 498, ETL, UL Approval; 125 Volt AC 1-Phase Voltage Rating; 15 Amp Current Rating; 2 Pole(S); Perma-Link Brand; Application Indoor
• Made In Usa: Yes
• Manufacturer: Ericson Mfg. Co.
• Manufacturer Brand: Ericson Mfg. Co.
• Sub Category: Straight Blade Connector
• Unspsc: 39121402
• UPC 12 Digit: 782862587508
• SKU Name: ericson 1610c
