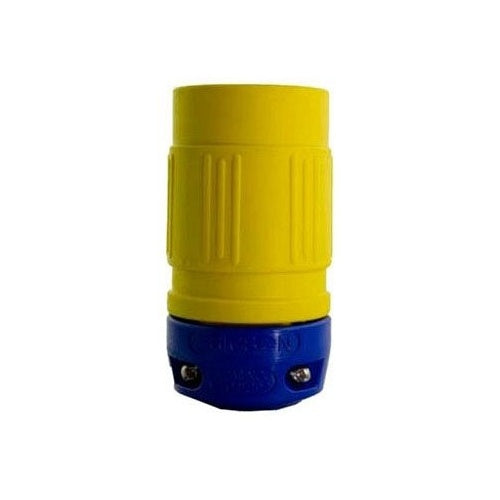

Ericson 2420-C 20A Nema L14-20R Connector

Overview

Ericson 2420-C 20A Nema L14-20R Connector

Product Specifications

• Brand Name: Ericson
• Voltage Rating: 125/250 V
• Nema Rating: L14-20
• Number Of Conductors: 4
• Number Of Poles: 3
• Size: 2.14 X 4.06 IN
• Special Features: Grounding, Dead-Front, Back-Wired Design, Solid Brass Blade, Transparent Back-Plate, Watertight
• Standard: UL, IEC
• Sub Brand: Perma-Link, Perma-Tite, Perma-Grip
• Type: Locking Blade
• Catalog Description: CONNECTOR NEMA L14-20, PERMA-LINK INDUSTRIAL GRADE YELLOW WIRING DEVICE, LOCKING 20 AMP 125/250V 1PH 3P/4W, SIZE = MED4, 2774
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Yellow Color; NEMA L14-20 Configuration; 4 Wire(S); CSA C22.2 NO.42, UL Approval; 125/250 Volt AC 1-Phase Voltage Rating; 20 Amp Current Rating; 3 Pole(S); Perma-Link Brand; Blade Style Locking; Category Portable Power Wiring Device; Grade Industrial; Environmental Rating Indoor
• Made In Usa: Yes
• Manufacturer: Ericson Mfg. Co.
• Manufacturer Brand: Ericson Mfg. Co.
• Sub Category: Locking Device Connector
• Unspsc: 39121402
• UPC 12 Digit: 782862586129
• SKU Name: ericson 2420c
