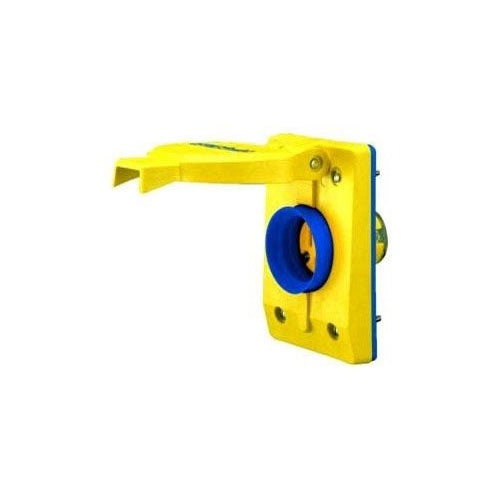

Ericson 2930-FS26 Nema L17-30 Cover Plate

Overview

Ericson 2930-FS26 Nema L17-30 Cover Plate

Product Specifications

• Application: For Mounts Easily To FS And FD Boxes And Any Flat Surface
• Standard: C/US UL Listed
• Type: Locking
• Voltage Rating: 125 to 600 V
• Brand Name: Ericson
• Color: Yellow
• Material: Valox Flip And Base, Santoprene Gasket, Stainless Steel Hardware
• Mounting: Plate/Screw
• Nema Rating: L17-30, IP 65, NEMA 4X, NEMA 3R Tested
• Number Of Wires: 4
• Phase: 3
• Special Features: Features: Weather Resistant Boot Seals Around Ericson Perma-Tite Plug To Provide Weather Resistant Protection; Spring-Loaded Flip-Lid Covers Receptacle When Not In Use; Includes Cover Plate, Rubber Boot, Stainless Steel Mounting Plate/Mounting Screws; Impact, Chemical And Corrosion Resistant Construction Stands Up To Demanding Environments; Mounts Easily To FS And FD Boxes And Any Flat Surface; Dimension X: 0.190 IN; Dimension Z: 1.980 IN; Series: 2900 FS; Includes: Flip Seal Cover, Cover Plates, Rubber Boot, Stainless Steel Mounting Plate/Mounting Screws; Dimension A: 2.140 IN; Dimension B: 1.920 IN
• Catalog Description: SINGLE FLIP LID FEMALE RECEPTACLE W/ FS COVERPLATE, W/ WATER TIGHT NEMA L17-30R
• Category: Wall Plates & Covers
• Full Technical Description: Single Type; Yellow Color; NEMA L17-30R Configuration; 4 Wire(S); UL 498, CSA C22.2 No. 42 Approval; 600 Volt AC 3-Phase Voltage Rating; 30 Amp Current Rating; Water Tight Flip Lid Cover Type; 3 Pole(S); Environmental Rating Outdoor; Includes FS Coverplate; Applicable Standard ANSI
• Made In Usa: Yes
• Manufacturer: Ericson Mfg. Co.
• Manufacturer Brand: Ericson Mfg. Co.
• Sub Category: Locking Receptacle with Plate
• Unspsc: 39121406
• UPC 12 Digit: 782862588017
• SKU Name: ericson 2930fs26
