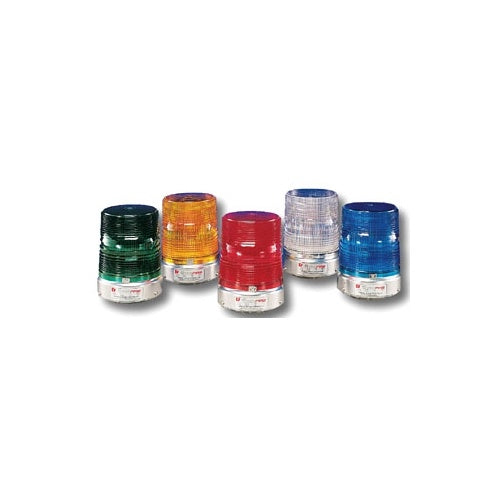

Federal-Signal 131ST-012-024R Strobe, 12-24VDC, Pipe Mount, Red

Overview

Federal-Signal 131ST-012-024R Strobe, 12-24VDC, Pipe Mount, Red

Product Specifications

• Application: Commercial Trucking
• Model: 131ST
• Mounting: 1/2-Inch NPT Pipe
• Nema Rating: Type 3R Enclosure (Dome Up Orientation)
• Shape: Cylindrical
• Size: 7.75 H x 5.7 W x 5.7 D IN
• Special Features: Single Or Double Flash Models
• Standard: UL Listed/cUL Listed
• Style: Strobe
• Sub Brand: Starfire
• Type: Strobe Warning Light
• Average Life: 10,000 HR
• Voltage Rating: 12 to 24 VDC
• Light Source: Strobe Tube
• Brand Name: Federal Signal
• Candle Power: 2M cd
• Color: Red
• Environmental Conditions: -31 to 150
• Fixture Type: Corner Bracket/Wall Bracket
• Flashes Per Minute: 80 FLPM
• Material: Aluminum/Polycarbonate
• Catalog Description: STARFIRE STROBE LIGHT, UL AND CUL, 12-24VDC, RED
• Category: Bells,Horns,Sirens,Buzzers,Strobes
• Full Technical Description: Strobe Light, Double Flash Type; 5.7 Inch Width X 8.5 Inch Height Size; UL, CUL, CSA Approval; 12 to 24 Volt DC Operating Voltage; Utility, Maintenance or Other Vehicles Requiring Emergency Warning Application; 1/2 Inch Threaded Pipe Mounting; NEMA 3R, IP45 Enclosure; 2.75 to 1.25 Amp Lamp Type; 2.75 to 1.25 Amp Operating Current; Red Lens Color; 80 FPM Flash Rate; 2000000 CD (Peak), 1000 CD (Ecp) Light Intensity; STARFIRE[R] Brand; Temperature Rating -31 to 150 Deg F
• Made In Usa: Yes
• Manufacturer: FEDERAL SIGNAL CORP.
• Manufacturer Brand: Federal Signal
• Sub Category: Strobe/Flashing Light Unit
• Unspsc: 39111706
• UPC 12 Digit: 782979286097
• SKU Name: fedsig 131st012024r

Resources

• Manufacturer Spec Sheet
