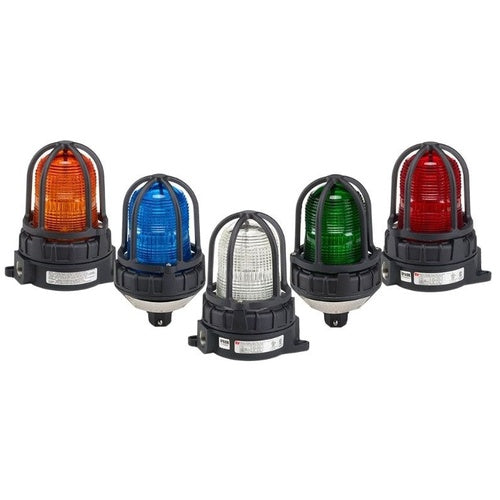

Federal-Signal 151XST-120B Strobe, 120VAC, Hazardous Location, Blue

Overview

Federal-Signal 151XST-120B Strobe, 120VAC, Hazardous Location, Blue

Product Specifications

• Application: Indoor/Outdoor
• Mounting: 3/4-Inch NPT Pipe
• Nema Rating: Type 4X, IP66, IP69K Enclosure
• Shape: Cylindrical
• Size: 9.25 H x 5.5 W x 5.5 D IN
• Special Features: 10,000 Hour High-Intensity Strobe
• Standard: UL Listed/cUL Listed/Marine Rated
• Style: Strobe
• Type: Hazardous Location Warning Light
• Voltage Rating: 120 to 240@50/60Hz VAC
• Light Source: Strobe Tube
• Average Life: 10,000 HR
• Brand Name: Federal Signal
• Candle Power: 520,000 cd
• Color: Blue
• Environmental Conditions: -67 to 150
• Flashes Per Minute: 80 FLPM
• Material: Aluminum/Glass
• Model: 151XST
• Catalog Description: STROBE LIGHT, HAZARDOUS LOCATION, UL AND CUL CID2, PIPE MOUNT, 120VAC, BLUE
• Category: Bells,Horns,Sirens,Buzzers,Strobes
• Full Technical Description: Strobe Light Type; 5.5 Inch Dia X 9.25 Inch H Size; UL, CUL, CSA Approval; 120 VAC at 50/60 Hz Operating Voltage; NEMA 4X, IP66 Enclosure; Strobe Tube Lamp Type; 0.35 Ampere Operating Current; Glass Dome, Aluminum Base Lens Material; Blue Lens Color; 80 FPM Flash Rate; 520000 CD (Peak), 165 CD (Ecp) Light Intensity; Mounting Type 3/4 Inch NPT Pipe; Operating Temperature -55 to 66 Deg C; Rated Life in Hour 10000; Includes Dome Guard; Application Hazardous Location, Indoor/Outdoor, Plant Evacuation
• Made In Usa: Yes
• Manufacturer: FEDERAL SIGNAL CORP.
• Manufacturer Brand: Federal Signal
• Sub Category: Stack Light Module
• Unspsc: 39111706
• UPC 12 Digit: 782979380719
• SKU Name: fedsig 151xst120b

Resources

• Manufacturer Spec Sheet
