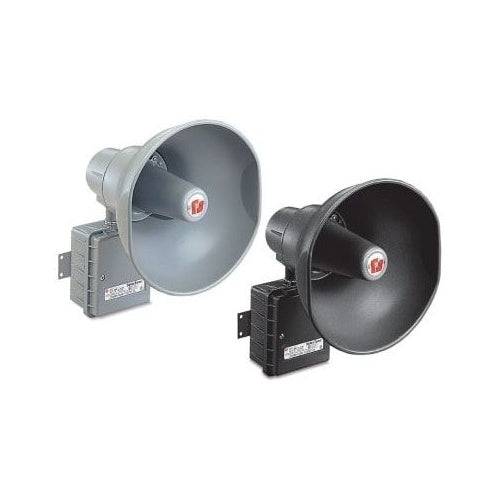

Federal-Signal 300GCX-024 Selectone Speaker/Amplifier, 24VAC/DC, Hazardous Location, Gain Control

Overview

Federal-Signal 300GCX-024 Selectone Speaker/Amplifier, 24VAC/DC, Hazardous Location, Gain Control

Product Specifications

• Brand Name: Federal Signal
• Operating Voltage: 24VDC/24VAC 50-60Hz
• Special Features: Digital Signal Amplification
• Standard: UL Listed/cUL Listed/CSFM Approved
• Sub Brand: SelecTone
• Termination: Terminal Block
• Type: Hazardous Location Amplified Speaker
• Enclosure: Type 4X, IP66, IP69K
• Output Level: 15 WTT
• Cable Entry Size: 1/2-Inch NPT
• Color: Gray
• Dimensions: 12.4 H x 7.9 W x 8.5 D IN
• Loudness: 0 to 110 DB
• Material: Die-Cast Aluminum
• Mounting: Surface
• Operating Current: 0.67@24VDC/0.90@24VAC A
• Operating Temperature: -67 to 150 DEG F
• Catalog Description: SELECTONE 15W AMPLIFIED SPEAKER, HAZARDOUS LOCATION, UL AND CUL CID2, 24VAC/DC, GRAY
• Category: Sound & Audio Systems
• Full Technical Description: Die-Cast Aluminum (Housing), Spun Aluminum (Projector) Material; UL, UL (Canada), UL 1480, CSFM Approval; 24 Volt DC Voltage Rating; Surface Mounting; 15 Watt Power Rating; 32 Tone Capacity; Hazardous Location; Fused Output Type; 0.67 Amp Operating Current; Application Emergency Warning, Evacuation, Start/Dismissal, Public Address, and Process Control Signaling, Indoor/Outdoor; Enclosure IP66; Enclosure Rating Class I Division 2 Group A B C and D, Class II Division 2 Group F and G, Class III; Operating Temperature -67 to 150 Deg F; Overall Dimension 7.9 Inch Width X 8.5 Inch Depth X 12.4 Inch Height; Body Color Gray; Sound Intensity 120 Decibel at 1 Meter (110 Decibel at 10 Foot)
• Made In Usa: Yes
• Manufacturer: Federal Signal Corporation
• Manufacturer Brand: Federal Signal
• Sub Category: Multi Tone Signaling Device
• Unspsc: 46171602
• UPC 12 Digit: 782979200352
• SKU Name: fedsig 300gcx024

Resources

• Technical Line Drawing
• Manufacturer Spec Sheet
