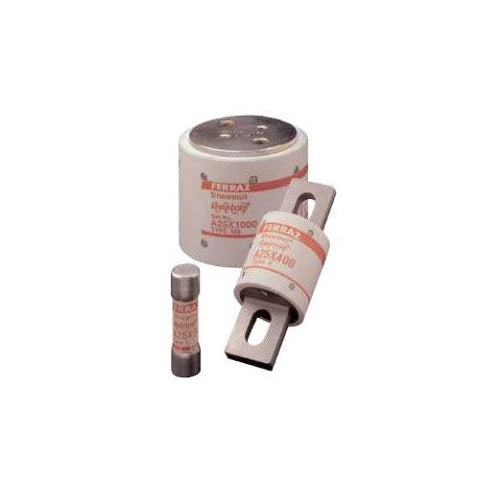

Mersen-Ferraz A25X100-4 100A Semiconductor Fuse

Overview

Mersen-Ferraz A25X100-4 100A Semiconductor Fuse

Product Specifications

• UPC: 78200194250
• Terminal Type: Blades, Bolt-In
• Diameter: 1.22 Inch
• Length: 3.13 Inch
• Approval: UL
• Additional Information: Application Protection of Heavy Duty Rectifiers and Similar Heavy Power Supplies
• Catalog Number: A25X100-4
• Model: A25X
• Type: Round, Semiconductor
• Characteristics: Fast Acting
• Voltage Rating: 250 VAC
• Current Rating: 100 Ampere
• Interrupting Rating: 10.6 Kiloampere (AC)
• Indication Type: Blown-Fuse
• Catalog Description: A25X AMP-TRAP SEMICONDUCTOR PROTECTION FUSES ARE INTENDED FOR THE PROTECTION OF POWER SEMICONDUCTORS SUCH AS DIODES, PHASE CONTROL SCR'S AND OTHER POWER SEMICONDUCTOR DEVICES 250 VOLTS 100 AMPS A25X SERIES.
• Category: Semicond,Rectifier,Hi-Voltage Fuses
• Full Technical Description: Round, Semiconductor Type; 3.13 Inch; UL Approval; 250 VAC Voltage Rating; 1.22 Inch Diameter; 10.6 Kiloampere (AC) Interrupting Rating; 100 Ampere Current Rating; Blades, Bolt-in Terminal Type; Fast Acting Characteristics; Blown-Fuse Indication Type; Application Protection of Heavy Duty Rectifiers and Similar Heavy Power Supplies; A25X Model
• Manufacturer: Mersen - Ferraz Shawmut
• Manufacturer Brand: Mersen - Ferraz Shawmut, Inc.
• Sub Category: North American Style Fuse
• Unspsc: 39121628
• UPC 12 Digit: 782001942502
• SKU Name: frz a25x1004
