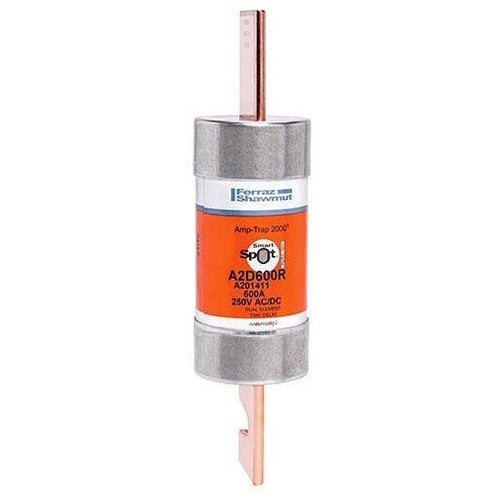

Mersen-Ferraz A2D600R 250V RK1 Time Delay Fuse

Overview

Mersen-Ferraz A2D600R 250V RK1 Time Delay Fuse

Product Specifications

• UPC: 78200199120
• Terminal Type: Blade
• Diameter: 2-9/16 Inch
• Length: 10-3/8 Inch
• Approval: UL 248/248-12, CSA C22.2
• Additional Information: RoHS Compliant; Mounting Type Clip; Material Fiberglass (Body), Tin Plated Copper (Terminal); Application Motor, Safety Switch, Transformer, Disconnect, Control Panel, All General Purpose Circuit
• Catalog Number: A2D600R
• Brand Name: Amp-Trap 2000[R], SmartSpot[R]
• Model: A2D-R
• Type: Class RK1
• Characteristics: Time Delay
• Voltage Rating: 250 Volt AC/DC
• Current Rating: 600 Amp
• Interrupting Rating: 200 Kiloamp (AC), 100 Kiloamp (DC)
• Catalog Description: FUSE A2D-R - CLASS RK1 - TIME-DELAY 250VAC 250VDC 600A BLADE SMARTSPOT AMP-TRAP 2000
• Category: Current Limiting Fuses
• Full Technical Description: Class RK1 Type; 10-3/8 Inch; UL 248/248-12, CSA C22.2 Approval; 250 Volt AC/DC Voltage Rating; 2-9/16 Inch Diameter; 200 Kiloamp (AC), 100 Kiloamp (DC) Interrupting Rating; 600 Amp Current Rating; Blade Terminal Type; Time Delay Characteristics; Amp-Trap 2000[R], SMARTSPOT[R] Brand; RoHS Compliant; Mounting Type Clip; Material Fiberglass (Body), Tin Plated Copper (Terminal); Application Motor, Safety Switch, Transformer, Disconnect, Control Panel, All General Purpose Circuit; A2D-R Model
• Manufacturer: Mersen - Ferraz Shawmut
• Manufacturer Brand: Mersen - Ferraz Shawmut, Inc.
• Sub Category: UL Power Fuse
• Unspsc: 39121604
• UPC 12 Digit: 782001991203
• SKU Name: frz a2d600r
