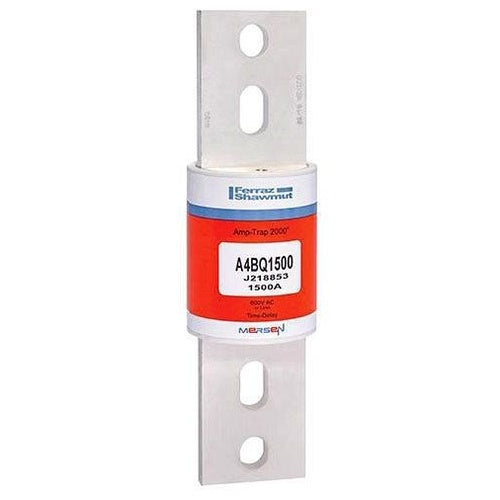

Mersen-Ferraz A4BQ1500 600V Class L Fuse

Overview

Mersen-Ferraz A4BQ1500 600V Class L Fuse

Product Specifications

• UPC: 78200193011
• Terminal Type: Blade
• Diameter: 3 Inch
• Length: 10-3/4 Inch
• Approval: UL 248/248-10, CSA C22.2
• Additional Information: Body Material Glass-Melamine Laminate; Contact Material Silver Plated Copper; Mounting Type Bolt-On; Application Mains, Feeders, Large Motor, Lightning, Heating, General Load, Circuit Breaker Back-Up, UPS, Battery Circuit
• Catalog Number: A4BQ1500
• Brand Name: Amp-Trap 2000[R]
• Model: A4BQ
• Type: Class L
• Characteristics: 4 Sec Time Delay (at 500 Percent Rated Load)
• Voltage Rating: 600 VAC, 500 VDC
• Current Rating: 1500 Ampere
• Interrupting Rating: 200 Kiloampere (AC), 100 Kiloampere (DC)
• Catalog Description: FUSE A4BQ - CLASS L - TIME-DELAY 600VAC 500VDC 1500A BLADE AMP-TRAP 2000
• Category: Current Limiting Fuses
• Full Technical Description: Class L Type; 10-3/4 Inch; UL 248/248-10, CSA C22.2 Approval; 600 VAC, 500 VDC Voltage Rating; 3 Inch Diameter; 200 Kiloampere (AC), 100 Kiloampere (DC) Interrupting Rating; 1500 Ampere Current Rating; Blade Terminal Type; 4 Sec Time Delay (at 500 Percent Rated Load) Characteristics; Amp-Trap 2000[R] Brand; Body Material Glass-Melamine Laminate; Contact Material Silver Plated Copper; Mounting Type Bolt-on; Application Mains, Feeders, Large Motor, Lightning, Heating, General Load, Circuit Breaker Back-Up, UPS, Battery Circuit; A4BQ Model
• Manufacturer: Mersen - Ferraz Shawmut
• Manufacturer Brand: Mersen - Ferraz Shawmut, Inc.
• Sub Category: UL Power Fuse
• Unspsc: 39121627
• UPC 12 Digit: 782001930110
• SKU Name: frz a4bq1500
