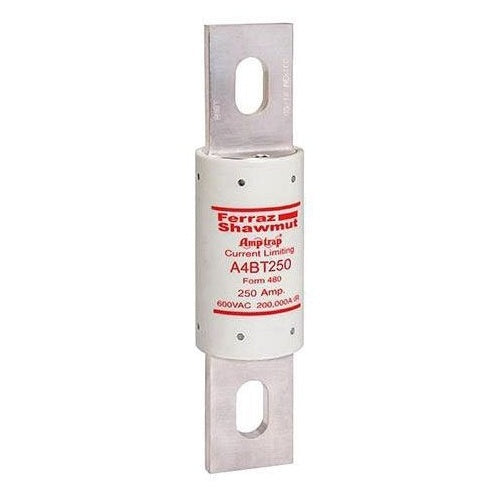

Mersen-Ferraz A4BT250 600V Class L Fuse

Overview

Mersen-Ferraz A4BT250 600V Class L Fuse

Product Specifications

• UPC: 78200193981
• Terminal Type: BLADE
• Diameter: 2 INCH
• Length: 8-5/8 INCH
• Approval: UL
• Additional Information: CURRENT LIMITING; MELAMINE TUBE
• Catalog Number: A4BT250
• Brand Name: AMP-TRAP[R]
• Model: A4BT
• Type: CLASS L
• Characteristics: 10 SEC TIME DELAY (AT 500 PERCENT RATED LOAD)
• Voltage Rating: 600 VAC/500 VDC
• Current Rating: 250 AMPERE
• Interrupting Rating: 200 KILOAMPERE (AC), 100 KILOAMPERE (DC)
• Catalog Description: FUSE A4BT - CLASS L - TIME-DELAY 600VAC 500VDC 250A BLADE AMP-TRAP
• Category: Current Limiting Fuses
• Full Technical Description: Class L Type; 8-5/8 Inch; UL Approval; 600 Vac/500 VDC Voltage Rating; 2 Inch Diameter; 200 Kiloampere (AC), 100 Kiloampere (DC) Interrupting Rating; 250 Ampere Current Rating; Blade Terminal Type; 10 Sec Time Delay (at 500 Percent Rated Load) Characteristics; AMP-TRAP[R] Brand; Current Limiting; Melamine Tube; A4BT Model
• Manufacturer: MERSEN (FORMERLY FERRAZ SHAWMUT INC)
• Manufacturer Brand: Mersen - Ferraz Shawmut, Inc.
• Sub Category: Ul Power Fuse
• Unspsc: 39121604
• UPC 12 Digit: 782001939816
• SKU Name: frz a4bt250
