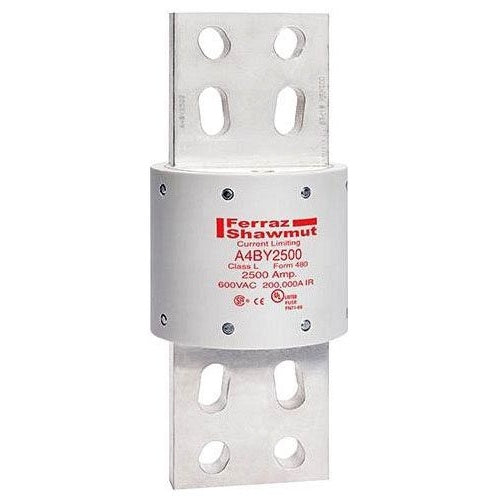

Mersen-Ferraz A4BY2500 600V Class L Fuse

Overview

Mersen-Ferraz A4BY2500 600V Class L Fuse

Product Specifications

• UPC: 78200193925
• Terminal Type: Blade
• Diameter: 4-1/2 Inch
• Length: 10-3/4 Inch
• Approval: UL E2137/238, CSA C22.2
• Additional Information: Mounting Type Bolt-On; Body Material GMG; Contact Material Silver-Plated Copper; Application Main, Feeder, Circuit Breaker, Load Center, Panelboard, Switchboard, Metering Center
• Catalog Number: A4BY2500
• Brand Name: Amp-Trap[R]
• Model: A4BY
• Type: Class L
• Characteristics: 4-Second Time Delay
• Voltage Rating: 600 Volt AC, 300 Volt DC
• Current Rating: 2500 Amp
• Interrupting Rating: 200 Kiloamp (AC), 100 Kiloamp (DC)
• Catalog Description: FUSE A4BY - CLASS L - TIME-DELAY 600VAC 300VDC 2500A BLADE AMP-TRAP
• Category: Current Limiting Fuses
• Full Technical Description: Class L Type; 10-3/4 Inch; UL E2137/238, CSA C22.2 Approval; 600 Volt AC, 300 Volt DC Voltage Rating; 4-1/2 Inch Diameter; 200 Kiloamp (AC), 100 Kiloamp (DC) Interrupting Rating; 2500 Amp Current Rating; Blade Terminal Type; 4-Second Time Delay Characteristics; AMP-TRAP[R] Brand; Mounting Type Bolt-on; Body Material Gmg; Contact Material Silver-Plated Copper; Application Main, Feeder, Circuit Breaker, Load Center, Panelboard, Switchboard, Metering Center; A4BY Model
• Manufacturer: Mersen - Ferraz Shawmut
• Manufacturer Brand: Mersen - Ferraz Shawmut, Inc.
• Sub Category: UL Power Fuse
• Unspsc: 39121627
• UPC 12 Digit: 782001939250
• SKU Name: frz a4by2500
