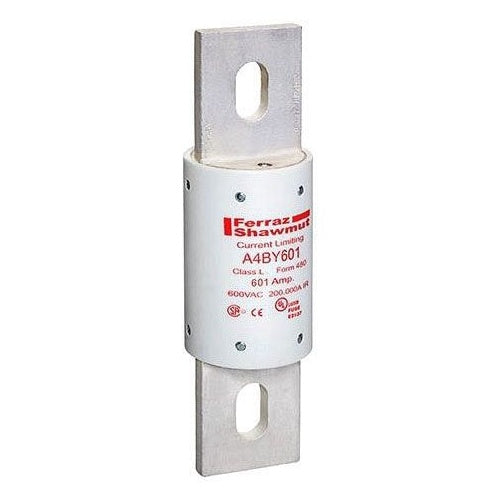

Mersen-Ferraz A4BY601 600V Class L Fuse

Overview

Mersen-Ferraz A4BY601 600V Class L Fuse

Product Specifications

• UPC: 78200193907
• Terminal Type: Blade
• Diameter: 2-1/2 Inch
• Length: 8-5/8 Inch
• Approval: UL 248/248-10, CSA C22.2
• Additional Information: Body Material Glass-Melamine Laminate; Contact Material Silver Plated Copper; Mounting Type Bolt-On; Application Mains, Feeders, Circuit Breakers, Loadcenter, Panelboard, Switchboard, Metering Centers
• Catalog Number: A4BY601
• Brand Name: Amp-Trap[R]
• Model: A4BY
• Type: Class L
• Characteristics: 4 Sec Time Delay (at 500 Percent Rated Load)
• Voltage Rating: 600 VAC, 300 VDC
• Current Rating: 601 Ampere
• Interrupting Rating: 200 Kiloampere (AC), 100 Kiloampere (DC)
• Catalog Description: FUSE A4BY - CLASS L - TIME-DELAY 600VAC 300VDC 601A BLADE AMP-TRAP
• Category: Current Limiting Fuses
• Full Technical Description: Class L Type; 8-5/8 Inch; UL 248/248-10, CSA C22.2 Approval; 600 VAC, 300 VDC Voltage Rating; 2-1/2 Inch Diameter; 200 Kiloampere (AC), 100 Kiloampere (DC) Interrupting Rating; 601 Ampere Current Rating; Blade Terminal Type; 4 Sec Time Delay (at 500 Percent Rated Load) Characteristics; AMP-TRAP[R] Brand; Body Material Glass-Melamine Laminate; Contact Material Silver Plated Copper; Mounting Type Bolt-on; Application Mains, Feeders, Circuit Breakers, Loadcenter, Panelboard, Switchboard, Metering Centers; A4BY Model
• Manufacturer: Mersen - Ferraz Shawmut
• Manufacturer Brand: Mersen - Ferraz Shawmut, Inc.
• Sub Category: UL Power Fuse
• Unspsc: 39121627
• UPC 12 Digit: 782001939076
• SKU Name: frz a4by601
