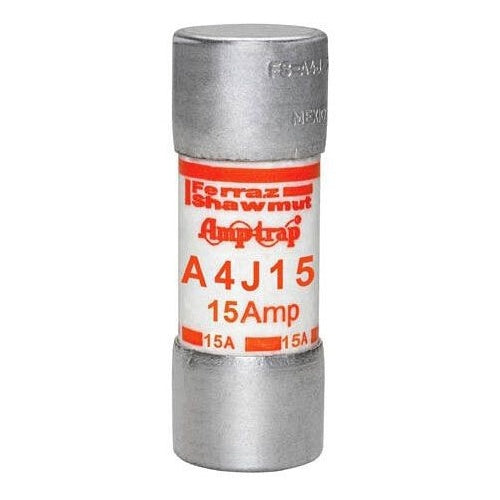

Mersen-Ferraz A4J15 600V Class J Fuse

Overview

Mersen-Ferraz A4J15 600V Class J Fuse

Product Specifications

• UPC: 78200196015
• Terminal Type: Ferrule
• Diameter: 13/16 Inch
• Length: 2-1/4 Inch
• Approval: UL 248/248-8, CSA C22.2
• Additional Information: RoHS Compliant; Mounting Type Clip; Material Fiberglass (Body), Tin Plated Copper (Terminal); Application Capacitor, Load Center, Panel Board, Switch Board, Bus Duct, Feeder Circuit, Circuit Breaker, Lightning, Heating and General Load; Applicable Standar
• Catalog Number: A4J15
• Brand Name: Amp-Trap[R]
• Model: A4J
• Type: Class J
• Characteristics: Fast Acting
• Voltage Rating: 600 Volt AC, 300 Volt DC
• Current Rating: 15 Amp
• Interrupting Rating: 200 Kiloamp (AC), 100 Kiloamp (DC)
• Catalog Description: FUSE A4J - CLASS J - FAST-ACTING 600VAC 300VDC 15A FERRULE AMP-TRAP
• Category: Current Limiting Fuses
• Full Technical Description: Class J Type; 2-1/4 Inch; UL 248/248-8, CSA C22.2 Approval; 600 Volt AC, 300 Volt DC Voltage Rating; 13/16 Inch Diameter; 200 Kiloamp (AC), 100 Kiloamp (DC) Interrupting Rating; 15 Amp Current Rating; Ferrule Terminal Type; Fast Acting Characteristics; AMP-TRAP[R] Brand; RoHS Compliant; Mounting Type Clip; Material Fiberglass (Body), Tin Plated Copper (Terminal); Application Capacitor, Load Center, Panel Board, Switch Board, Bus Duct, Feeder Circuit, Circuit Breaker, Lightning, Heating and General Load; Applicable Standard IEC 269-2-1; A4J Model
• Manufacturer: Mersen - Ferraz Shawmut
• Manufacturer Brand: Mersen - Ferraz Shawmut, Inc.
• Sub Category: UL Power Fuse
• Unspsc: 39121627
• UPC 12 Digit: 782001960155
• SKU Name: frz a4j15
