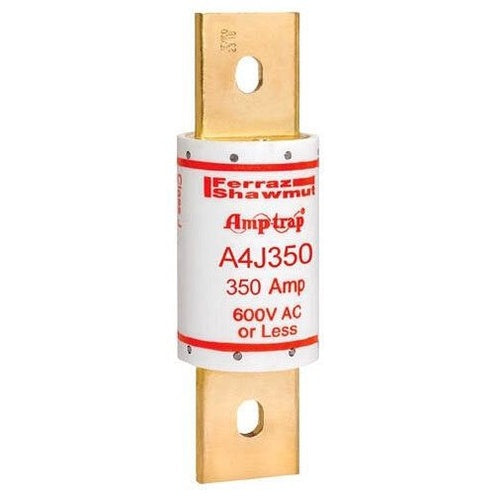

Mersen-Ferraz A4J350 600V Class J Fuse

Overview

Mersen-Ferraz A4J350 600V Class J Fuse

Product Specifications

• UPC: 78200196043
• Diameter: 2-1/8 Inch
• Length: 7-1/8 Inch
• Approval: UL 248/248-8, CSA C22.2
• Additional Information: Body Material Polyester/Glass-Melamine Laminate; Contact Material Tin Plated Copper, Silver Plated Copper, Brass Alloy; Mounting Clip; Application Capacitor, Loadcenter, Panelboard, Switchboard, Bus Duct, Feeder Circuits, Circuit Breaker, Lightning, Heati
• Catalog Number: A4J350
• Model: A4J
• Type: Class J
• Characteristics: Fast Acting
• Voltage Rating: 600 VAC, 300 VDC
• Current Rating: 350 Ampere
• Interrupting Rating: 200 Kiloampere (AC), 100 Kiloampere (DC)
• Terminal Type: Blade
• Catalog Description: FUSE A4J - CLASS J - FAST-ACTING 600VAC 300VDC 350A BLADE AMP-TRAP
• Category: Current Limiting Fuses
• Full Technical Description: Class J Type; 7-1/8 Inch; UL 248/248-8, CSA C22.2 Approval; 600 VAC, 300 VDC Voltage Rating; 2-1/8 Inch Diameter; 200 Kiloampere (AC), 100 Kiloampere (DC) Interrupting Rating; 350 Ampere Current Rating; Blade Terminal Type; Fast Acting Characteristics; AMP-TRAP[R] Brand; Body Material Polyester/Glass-Melamine Laminate; Contact Material Tin Plated Copper, Silver Plated Copper, Brass Alloy; Mounting Clip; Application Capacitor, Loadcenter, Panelboard, Switchboard, Bus Duct, Feeder Circuits, Circuit Breaker, Lightning, Heating and General Load; A4J Model
• Manufacturer: Mersen - Ferraz Shawmut
• Manufacturer Brand: Mersen - Ferraz Shawmut, Inc.
• Sub Category: UL Power Fuse
• Unspsc: 39121627
• UPC 12 Digit: 782001960438
• SKU Name: frz a4j350
