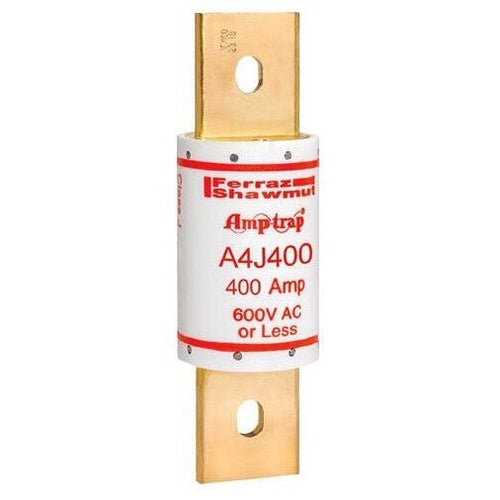

Mersen-Ferraz A4J400 600V Class J Fuse

Overview

Mersen-Ferraz A4J400 600V Class J Fuse

Product Specifications

• UPC: 78200196045
• Terminal Type: Blade
• Diameter: 2.12 Inch
• Length: 7.13 Inch
• Approval: UL 248/248-8, CSA C22.2
• Additional Information: RoHS Compliant; Body/Insulating Material Fiberglass; Connection/Terminal Material Brass Alloy; Mounting Type Clip; Application Capacitor, Load Center, Panelboard, Switchboard, Bus Duct, Feeder Circuit, Circuit Breaker, Lighting, Heating and General Load;
• Catalog Number: A4J400
• Brand Name: Amp-Trap[R]
• Model: A4J
• Type: Class J
• Characteristics: Fast Acting
• Voltage Rating: 600 Volt AC, 300 Volt DC
• Current Rating: 400 Amp
• Interrupting Rating: 200 Kiloamp (AC), 100 Kiloamp (DC)
• Catalog Description: FUSE A4J - CLASS J - FAST-ACTING 600VAC 300VDC 400A BLADE AMP-TRAP
• Category: Current Limiting Fuses
• Full Technical Description: Class J Type; 7.13 Inch; UL 248/248-8, CSA C22.2 Approval; 600 Volt AC, 300 Volt DC Voltage Rating; 2.12 Inch Diameter; 200 Kiloamp (AC), 100 Kiloamp (DC) Interrupting Rating; 400 Amp Current Rating; Blade Terminal Type; Fast Acting Characteristics; AMP-TRAP[R] Brand; RoHS Compliant; Body/Insulating Material Fiberglass; Connection/Terminal Material Brass Alloy; Mounting Type Clip; Application Capacitor, Load Center, Panelboard, Switchboard, Bus Duct, Feeder Circuit, Circuit Breaker, Lighting, Heating and General Load; Applicable Standard IEC 269-2-1; A4J Model
• Manufacturer: Mersen - Ferraz Shawmut
• Manufacturer Brand: Mersen - Ferraz Shawmut, Inc.
• Sub Category: UL Power Fuse
• Unspsc: 39121627
• UPC 12 Digit: 782001960452
• SKU Name: frz a4j400
