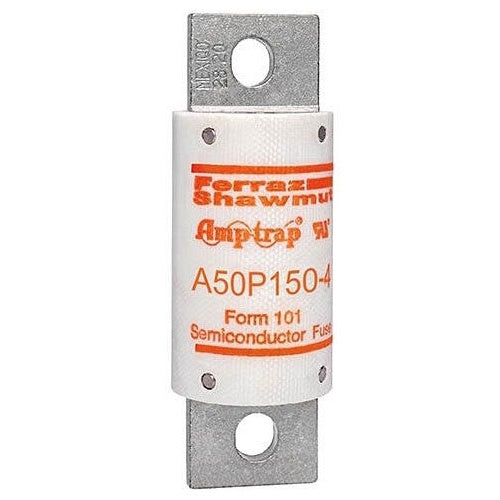

Mersen-Ferraz A50P150-4 500V Semiconductor Fuse

Overview

Mersen-Ferraz A50P150-4 500V Semiconductor Fuse

Product Specifications

• UPC: 78200194610
• Terminal Type: Blade
• Diameter: 1.22 Inch
• Length: 3.63 Inch
• Approval: UL
• Additional Information: RoHS Compliant; Mounting Type Bolted; Material GMG (Body), Tin Plated Brass (Terminal); Application Protection of DC Drive, UPS
• Catalog Number: A50P150-4
• Brand Name: Amp-Trap[R]
• Model: A50P
• Type: Round, Semiconductor
• Characteristics: Very Fast Acting, High Speed
• Voltage Rating: 500 Volt AC, 450 Volt DC
• Current Rating: 150 Amp
• Interrupting Rating: 50 Kiloamp (AC)
• Catalog Description: HIGH SPEED FUSE AMP-TRAP A50P 500VAC 450VDC 150A BLADE
• Category: Semicond,Rectifier,Hi-Voltage Fuses
• Full Technical Description: Round, Semiconductor Type; 3.63 Inch; UL Approval; 500 Volt AC, 450 Volt DC Voltage Rating; 1.22 Inch Diameter; 50 Kiloamp (AC) Interrupting Rating; 150 Amp Current Rating; Blade Terminal Type; Very Fast Acting, High Speed Characteristics; AMP-TRAP[R] Brand; RoHS Compliant; Mounting Type Bolted; Material Gmg (Body), Tin Plated Brass (Terminal); Application Protection of DC Drive, UPS; A50P Model
• Manufacturer: MERSEN (FORMERLY FERRAZ SHAWMUT INC)
• Manufacturer Brand: Mersen - Ferraz Shawmut, Inc.
• Sub Category: North American Style Fuse
• Unspsc: 39121628
• UPC 12 Digit: 782001946104
• SKU Name: frz a50p1504
