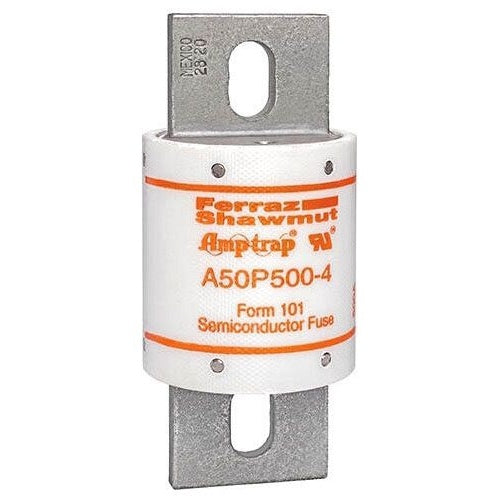

Mersen-Ferraz A50P500-4 500V Semiconductor Fuse

Overview

Mersen-Ferraz A50P500-4 500V Semiconductor Fuse

Product Specifications

• UPC: 78200194620
• Terminal Type: Blade
• Diameter: 2 Inch
• Length: 4.47 Inch
• Approval: UL 60314
• Additional Information: RoHS Compliant; Body/Insulating Material Glass Melamine Laminate; Connection/Terminal Material Tin Plated Copper; Mounting Type Bolt-In; Application Motor Circuit, Main, Feeder, Branch Circuit, Transformer, Service Entrance Equipment, General Purpose Equi
• Catalog Number: A50P500-4
• Brand Name: Amp-Trap[R] Foam 1
• Model: A50P
• Type: Round, Semiconductor
• Characteristics: Very Fast Acting, High Speed
• Voltage Rating: 500 Volt AC, 450 Volt DC
• Current Rating: 500 Amp
• Interrupting Rating: 50 Kiloamp (AC)
• Catalog Description: HIGH SPEED FUSE AMP-TRAP A50P 500VAC 450VDC 500A BLADE
• Category: Semicond,Rectifier,Hi-Voltage Fuses
• Full Technical Description: Round, Semiconductor Type; 4.47 Inch; UL 60314 Approval; 500 Volt AC, 450 Volt DC Voltage Rating; 2 Inch Diameter; 50 Kiloamp (AC) Interrupting Rating; 500 Amp Current Rating; Blade Terminal Type; Very Fast Acting, High Speed Characteristics; AMP-TRAP[R] Brand; RoHS Compliant; Body/Insulating Material Glass Melamine Laminate; Connection/Terminal Material Tin Plated Copper; Mounting Type Bolt-in; Application Motor Circuit, Main, Feeder, Branch Circuit, Transformer, Service Entrance Equipment, General Purpose Equipment, Protection of DC Drive, UPS and Other Equipment of 500 Volt or Less; A50P Model
• Manufacturer: Mersen - Ferraz Shawmut
• Manufacturer Brand: Mersen - Ferraz Shawmut, Inc.
• Sub Category: North American Style Fuse
• Unspsc: 39121628
• UPC 12 Digit: 782001946203
• SKU Name: frz a50p5004
