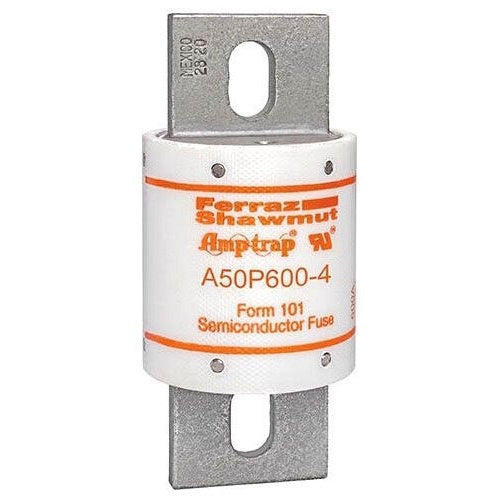

Mersen-Ferraz A50P600-4 500V Semiconductor Fuse

Overview

Mersen-Ferraz A50P600-4 500V Semiconductor Fuse

Product Specifications

• UPC: 78200194626
• Terminal Type: Blade
• Diameter: 2 Inch
• Length: 4.47 Inch
• Approval: UL
• Additional Information: Body Style Cylindrical, Non-Rejection; Body Material Glass-Melamine Laminate; Contact Material Tin Plated Copper/Brass, Silver Plated Copper; Mounting Type Bolt-In; Application Protection of DC Drive, UPS
• Catalog Number: A50P600-4
• Brand Name: Ferraz
• Model: A50P
• Type: Round, Semiconductor
• Characteristics: Very Fast Acting, High Speed
• Voltage Rating: 500 Volt AC, 450 Volt DC
• Current Rating: 600 Amp
• Interrupting Rating: 100 Kiloamp (AC), 79 Kiloamp (DC)
• Catalog Description: HIGH SPEED FUSE AMP-TRAP A50P 500VAC 450VDC 600A BLADE
• Category: Semicond,Rectifier,Hi-Voltage Fuses
• Full Technical Description: Round, Semiconductor Type; 4.47 Inch; UL Approval; 500 Volt AC, 450 Volt DC Voltage Rating; 2 Inch Diameter; 100 Kiloamp (AC), 79 Kiloamp (DC) Interrupting Rating; 600 Amp Current Rating; Blade Terminal Type; Very Fast Acting, High Speed Characteristics; AMP-TRAP[R] Brand; Body Style Cylindrical, Non-Rejection; Body Material Glass-Melamine Laminate; Contact Material Tin Plated Copper/Brass, Silver Plated Copper; Mounting Type Bolt-in; Application Protection of DC Drive, UPS; A50P Model
• Manufacturer: Mersen - Ferraz Shawmut
• Manufacturer Brand: Mersen - Ferraz Shawmut, Inc.
• Sub Category: North American Style Fuse
• Unspsc: 39121628
• UPC 12 Digit: 782001946265
• SKU Name: frz a50p6004
